Accurpress Parts and Assemblies Manual for Press Brakes
Posted 08-17-2015 By mbateam
Find the Accurpress parts that you need, diagrams, names and descriptions, in this easy to use gallery of Accurpress Press Brake Parts and Assemblies Manual
Accurpress Press Brake: Press Brake Main Assembly

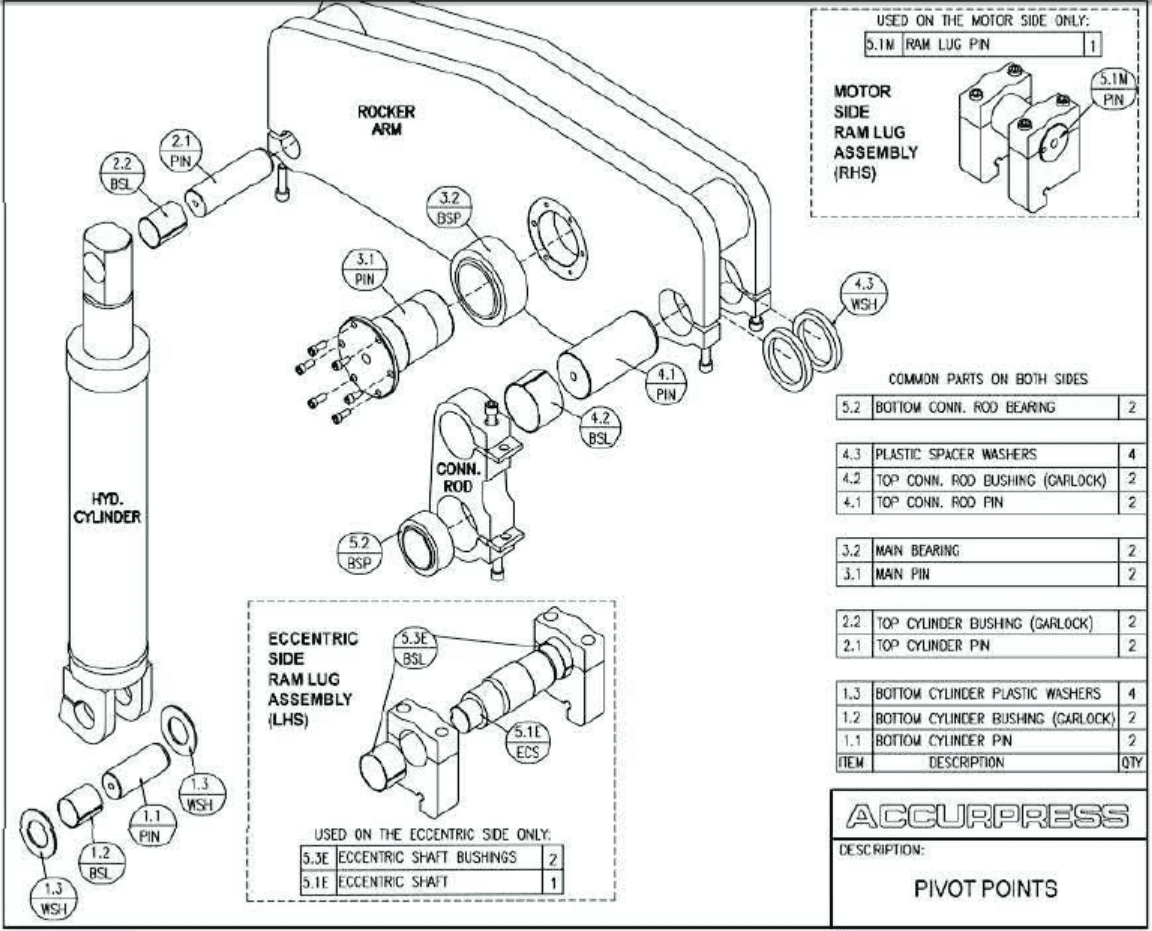

Accurpress Press Brake: Pivot Points

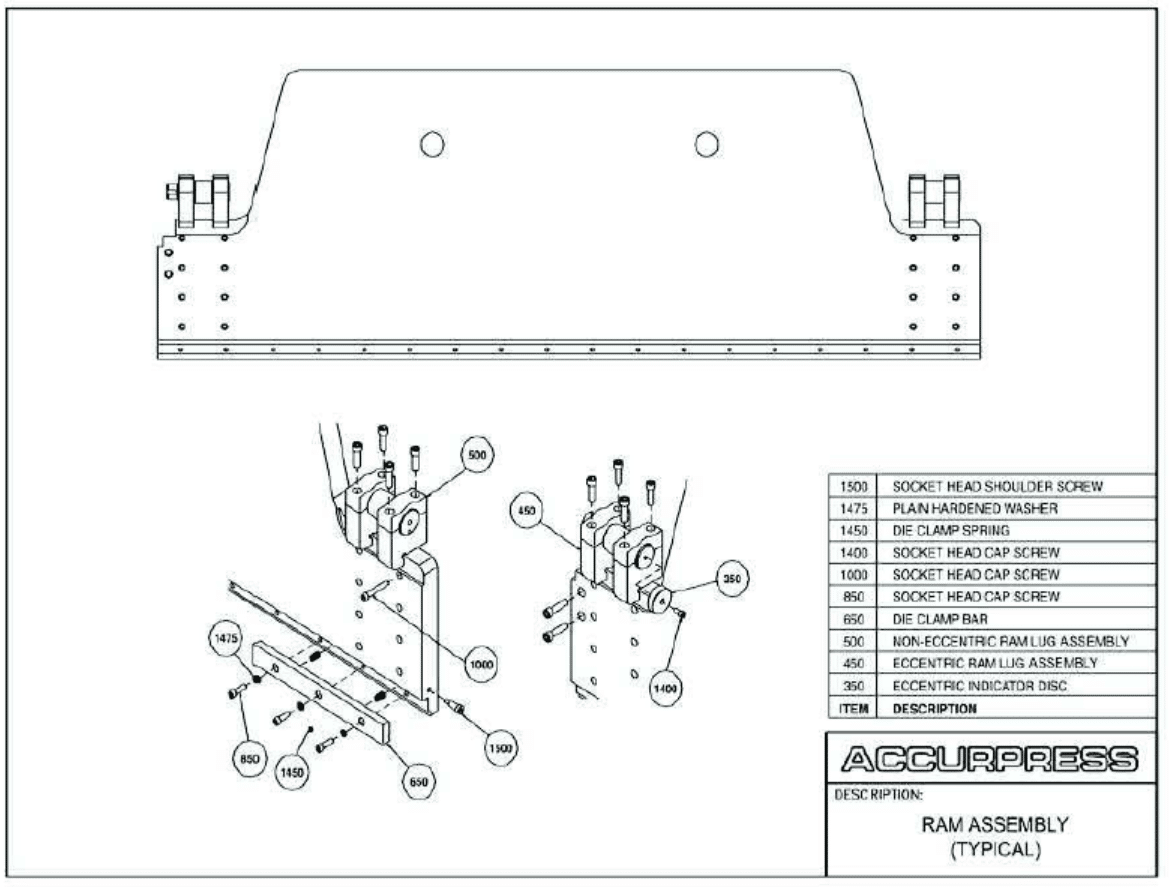

Accurpress Press Brake: Ram Assembly

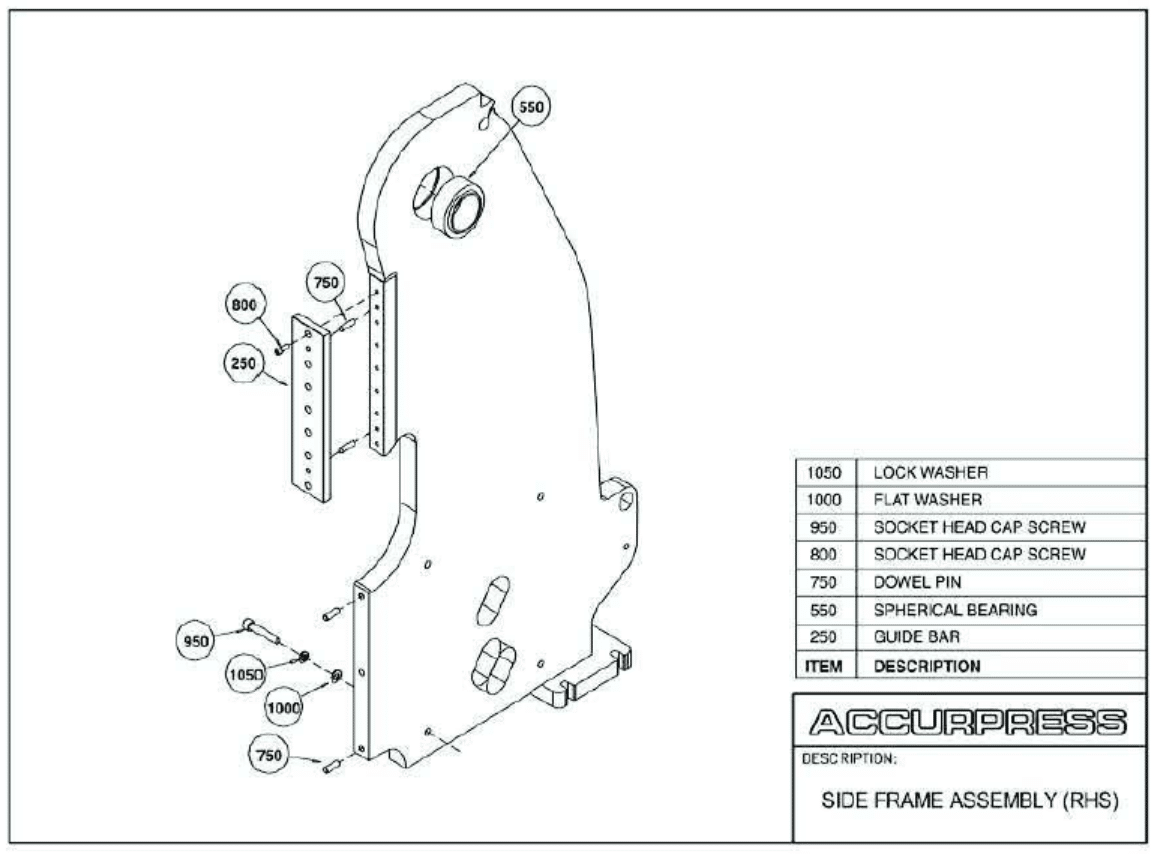

Accurpress Press Brake: Side Frame Assembly

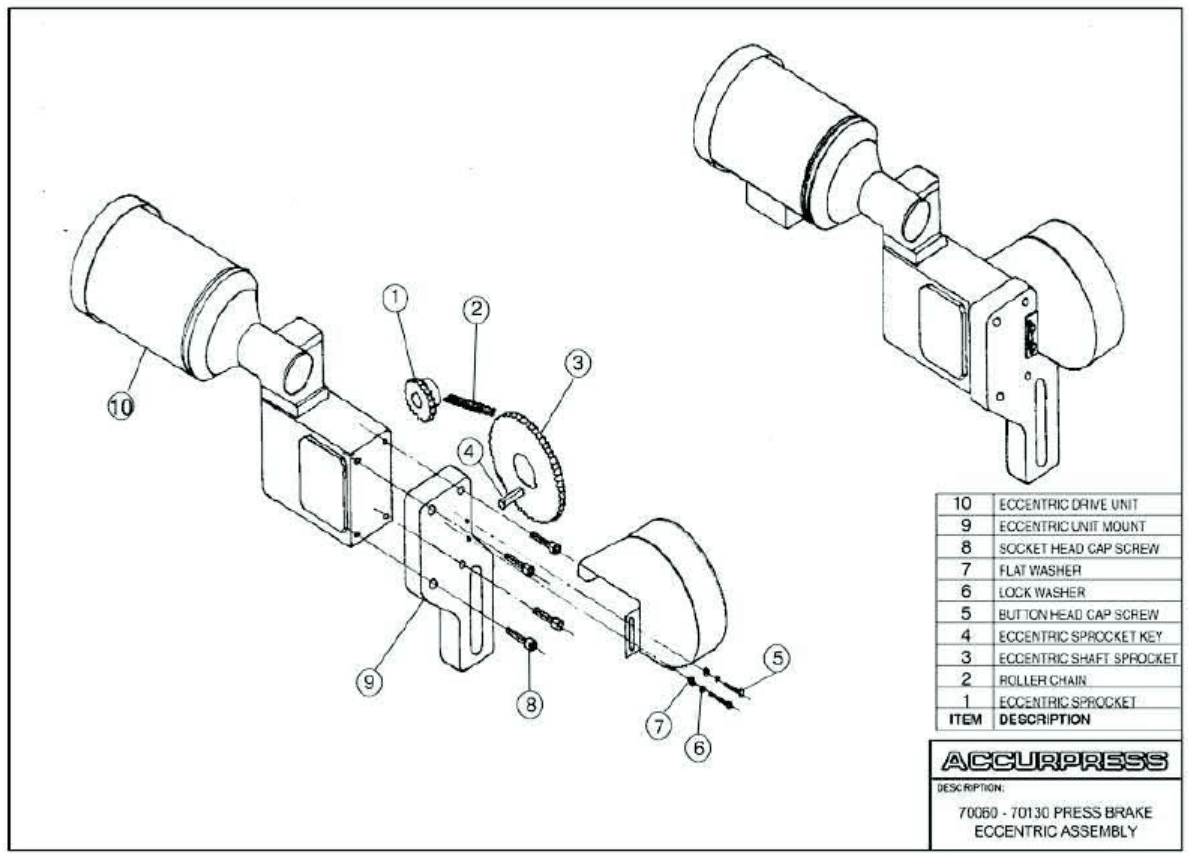

Accurpress Press Brake: 70060-70130 Press Brake Eccentric Assembly

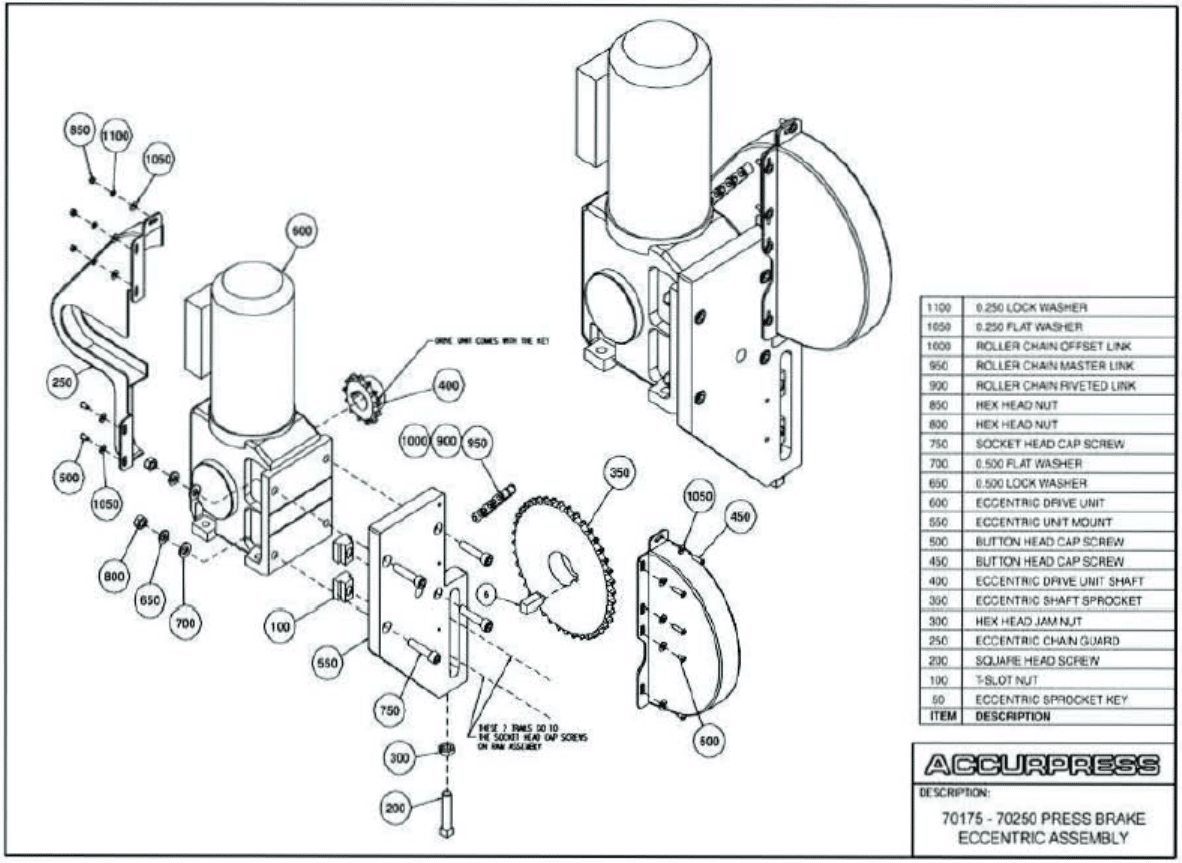

Accurpress Press Brake: 70175-70250 Press Brake Eccentric Assembly

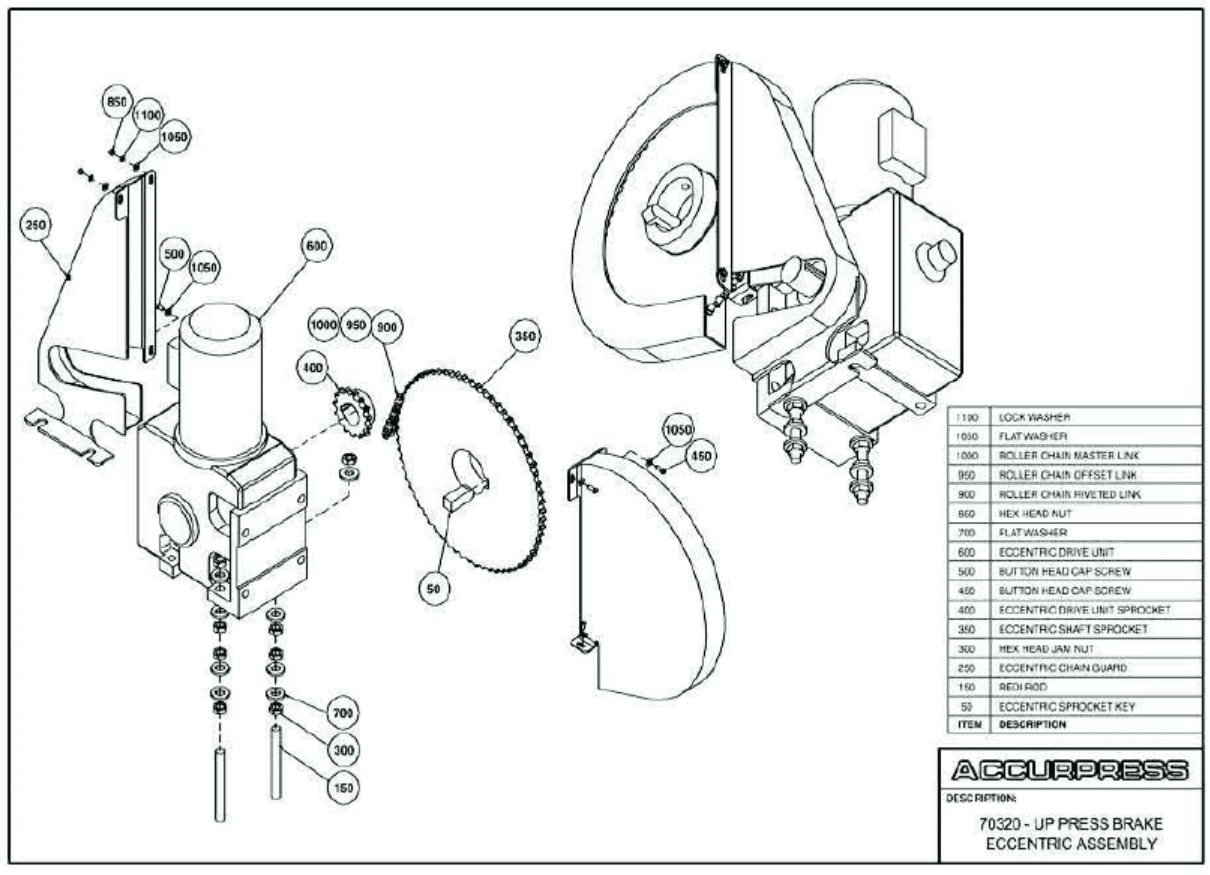

Accurpress Press Brake: 70320-UP Press Brake Eccentric Assembly

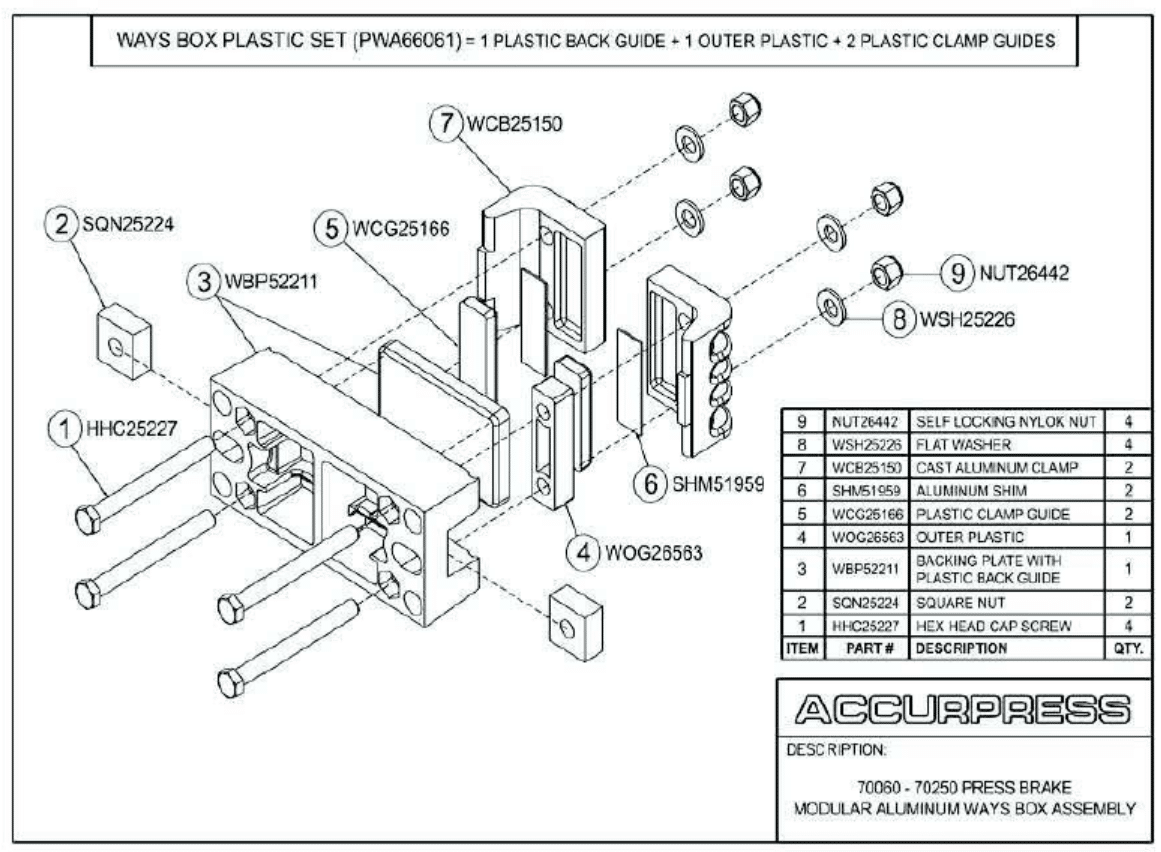

Accurpress Press Brake: 70060-70250-Press Brake Modular Aluminum Ways Box Assembly

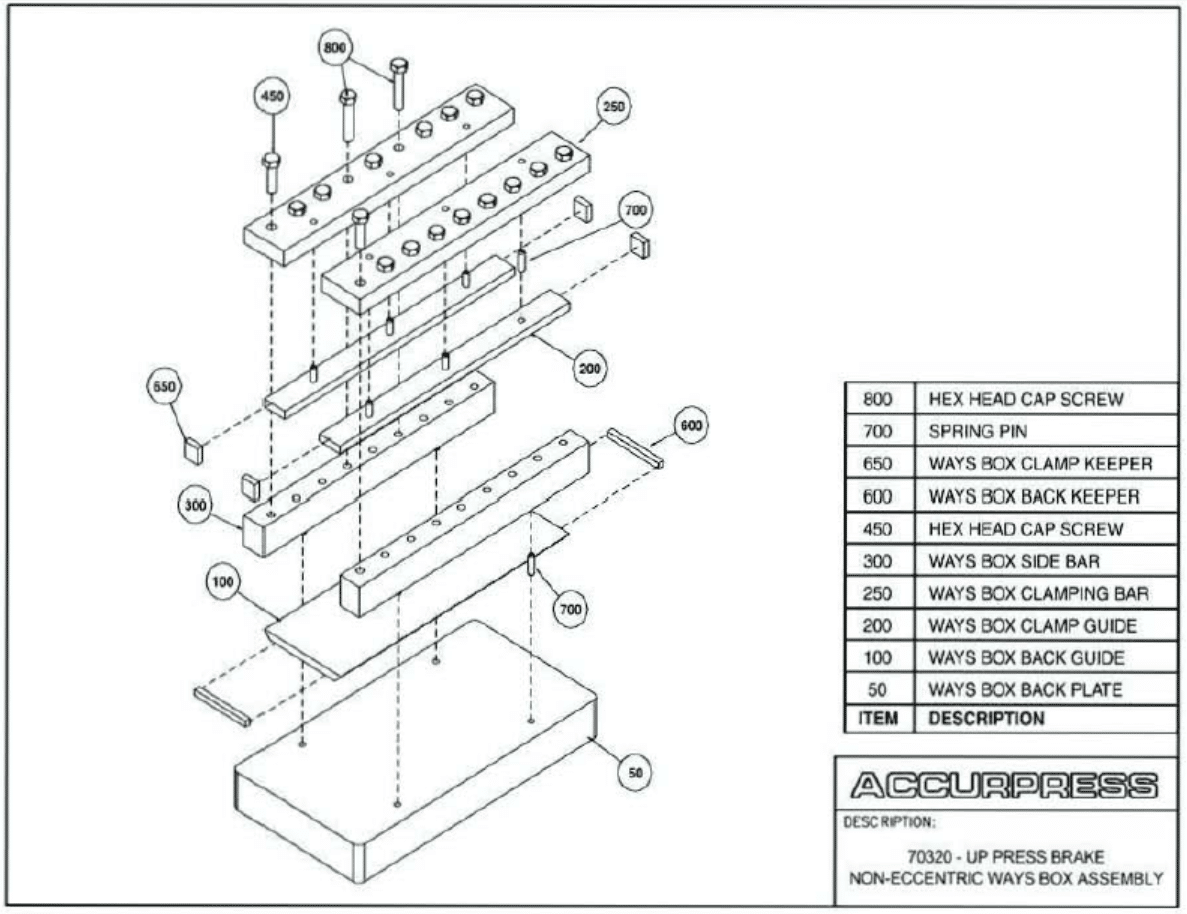

Accurpress Press Brake: 70320 – UP Press Brake Non-Eccentric Ways Box Assembly

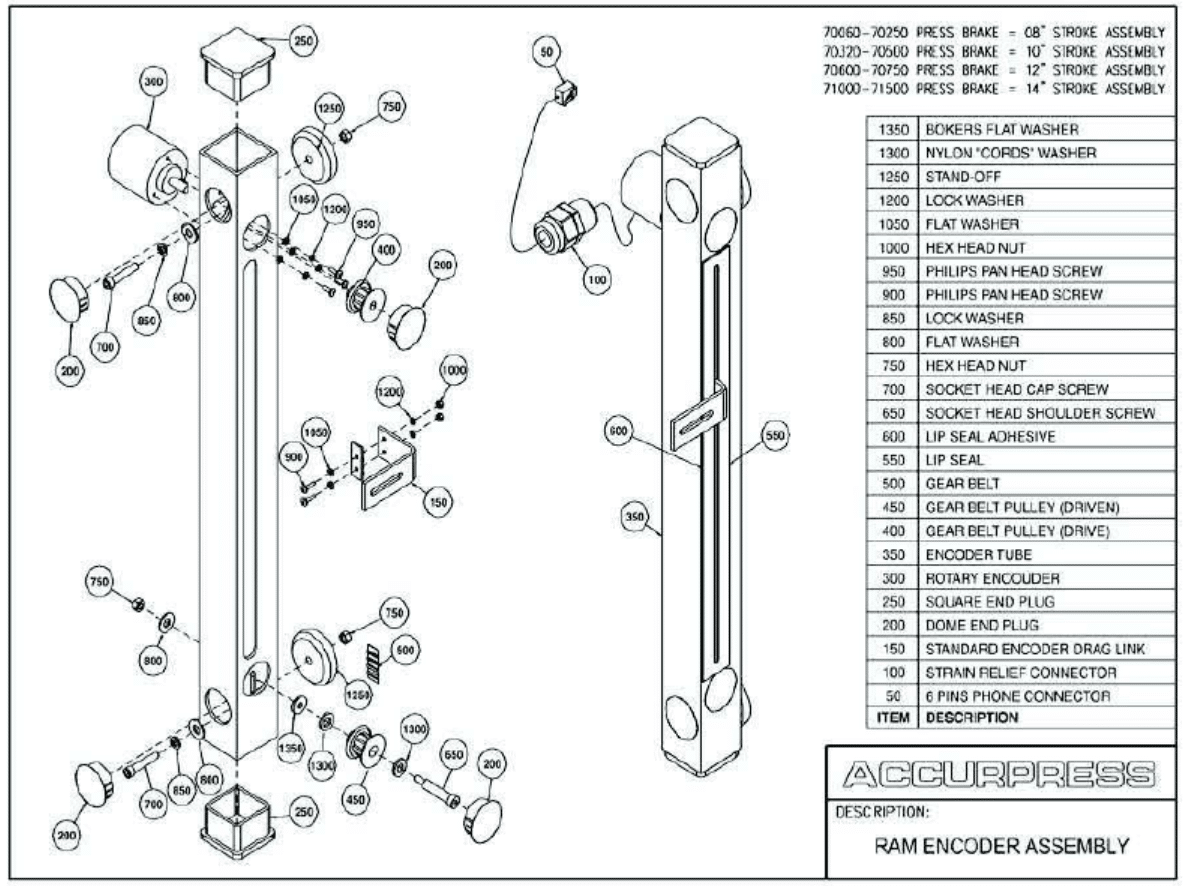

Accurpress Press Brake: RAM Encoder Assembly

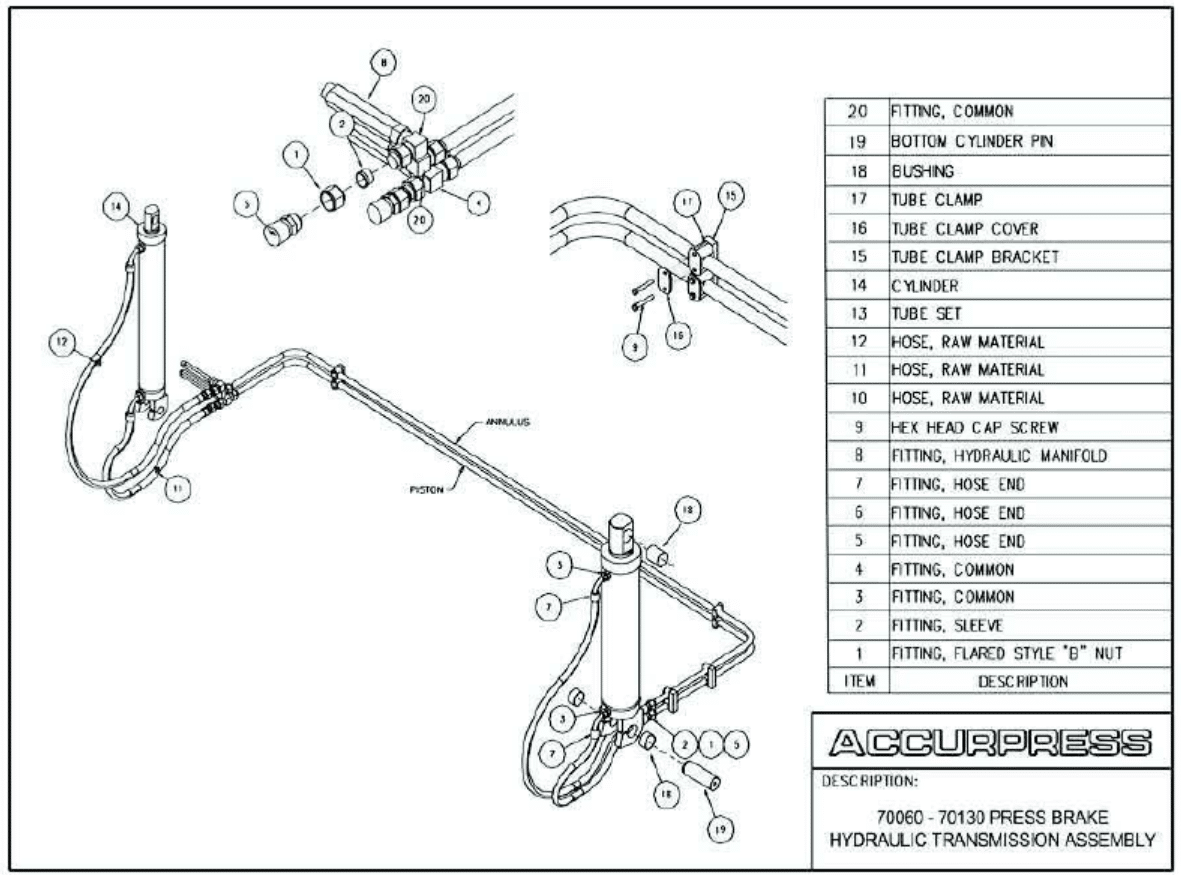

Accurpress Press Brake: 70060-70130 Press Brake Hydraulic Transmission Assembly

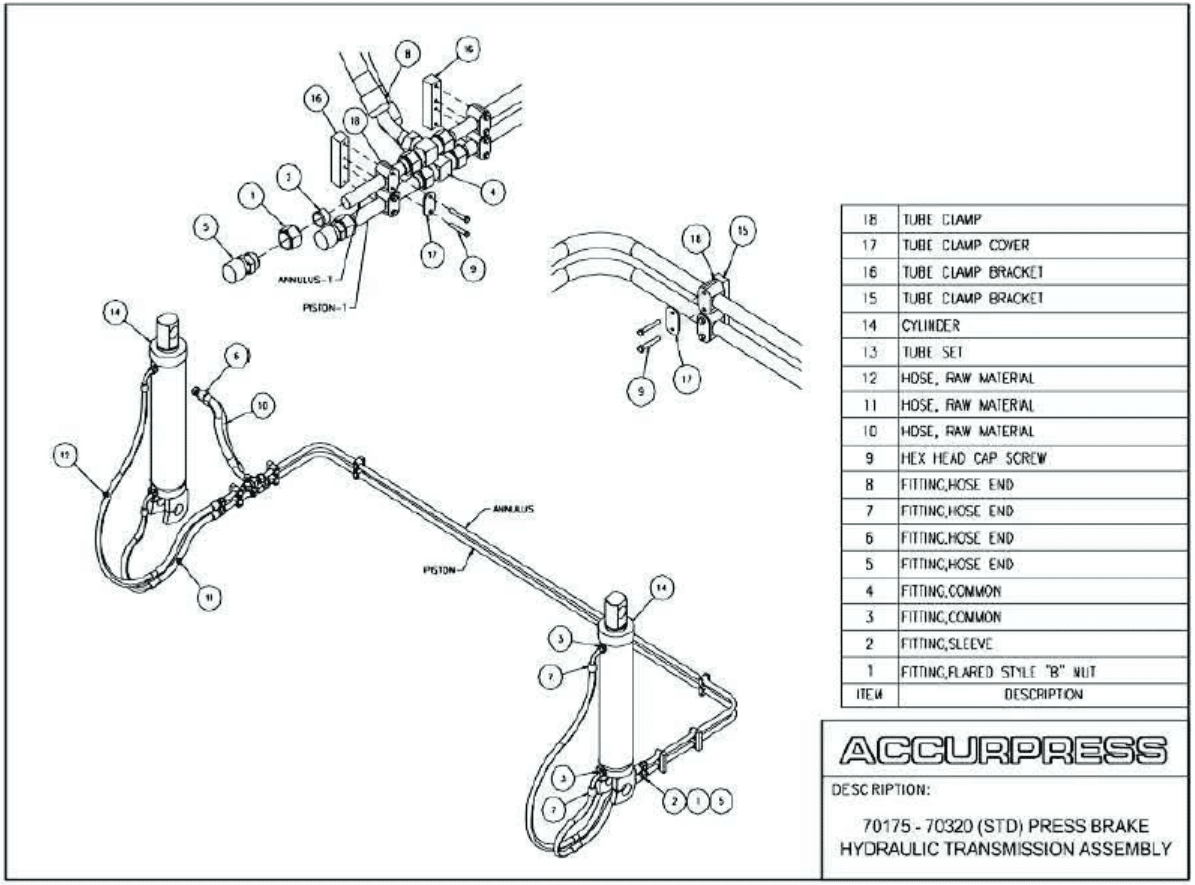

Accurpress Press Brake: 70175 – 70320 (STD) Press Brake Hydraulic Transmission Assembly

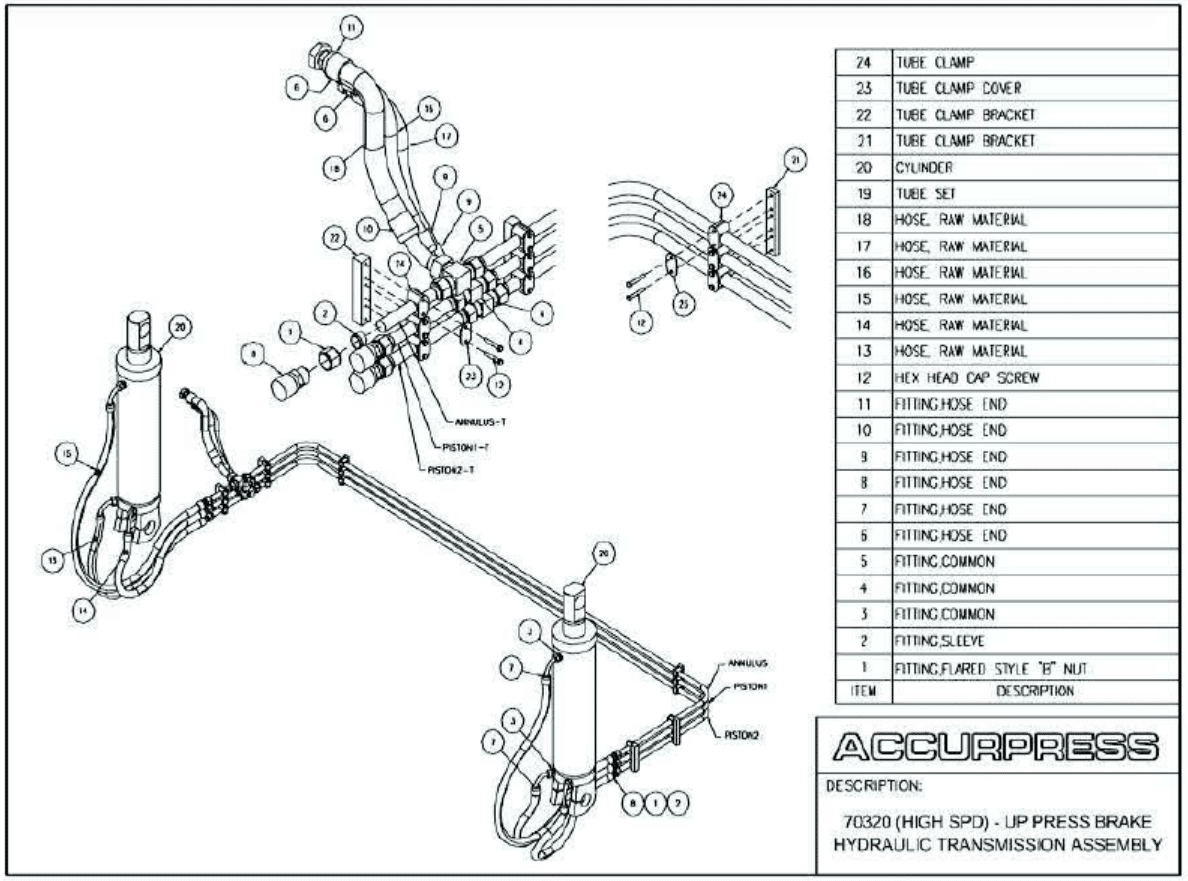

Accurpress Press Brake: 70320 (High Speed) UP Press Brake Hydraulic Transmission Assembly

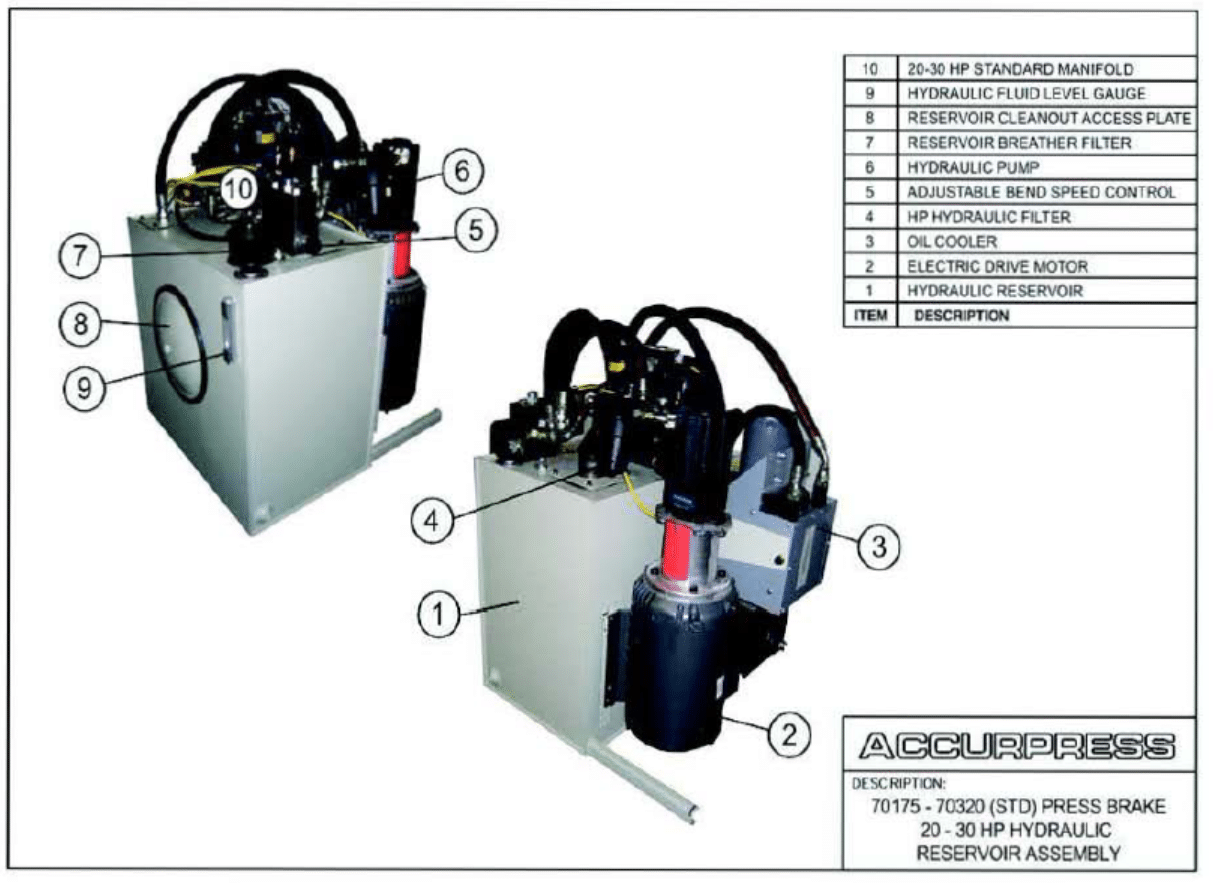

Accurpress Press Brake: 70175 – 70320 (STD) Press Brake 20-30 HP Hydraulic Reservoir (Tank) Assembly

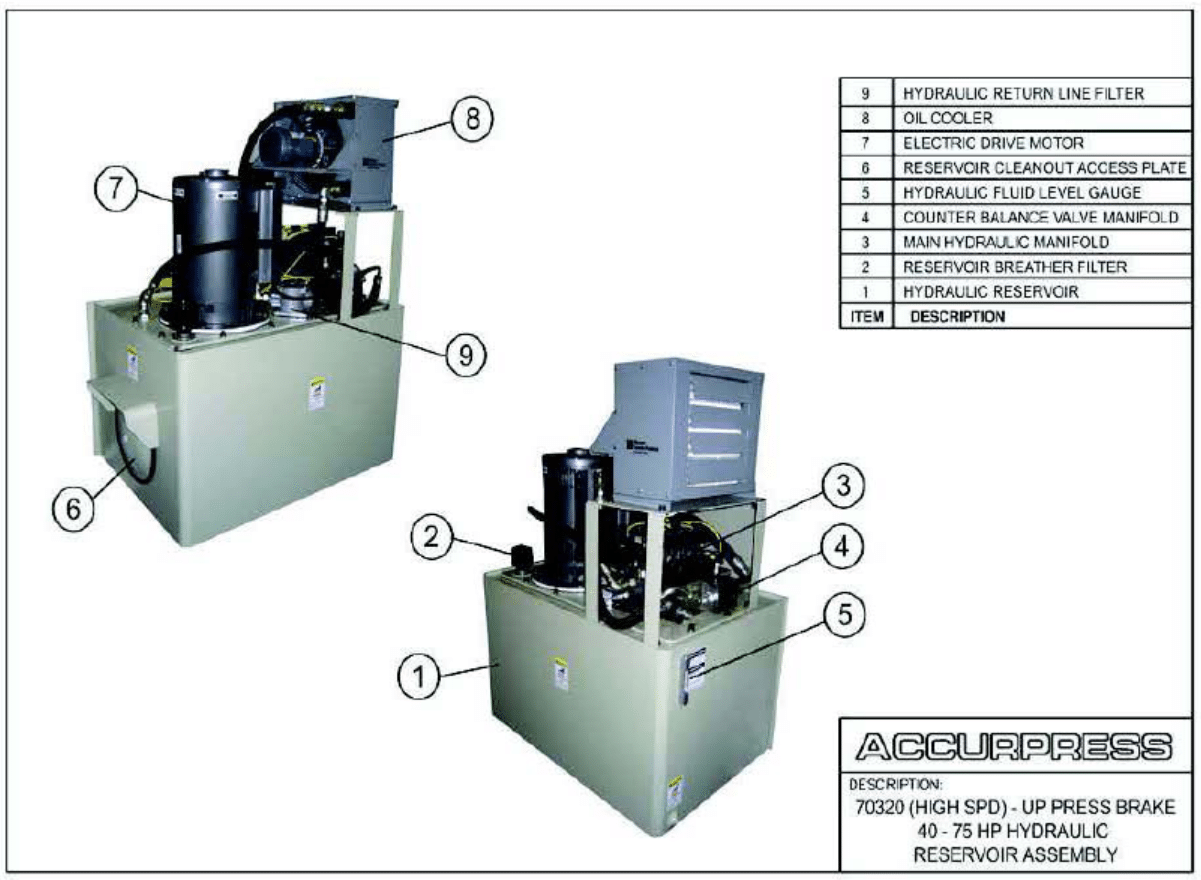

Accurpress Press Brake: (High SPD) – UP Press Brake 40-75 HP Hydraulic Reservoir (Tank) Assembly

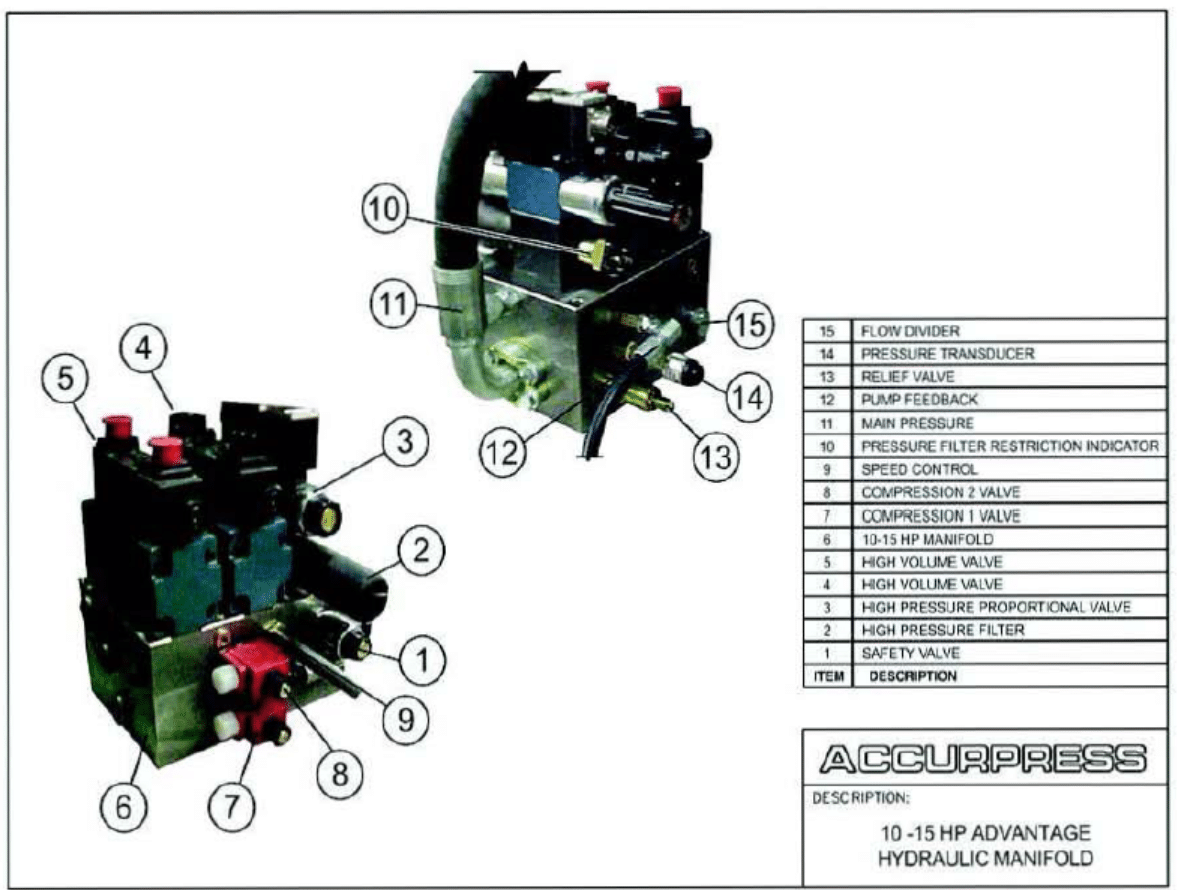

Accurpress Press Brake: 10-15 HP Advantage Main Hydraulic Manifold Assembly

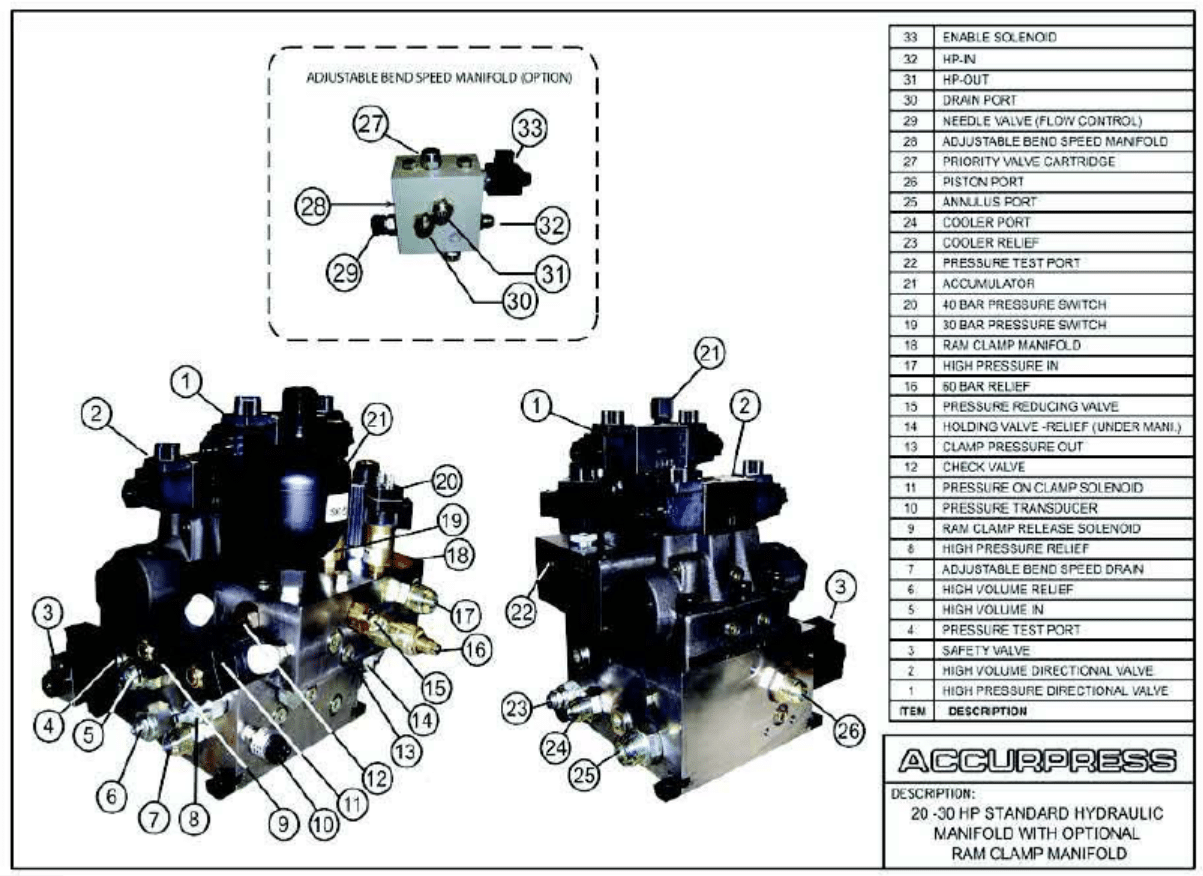

Accurpress Press Brake: 20-30 HP Standard Hydraulic Manifold With Optional Ram Clamp Manifold Assembly

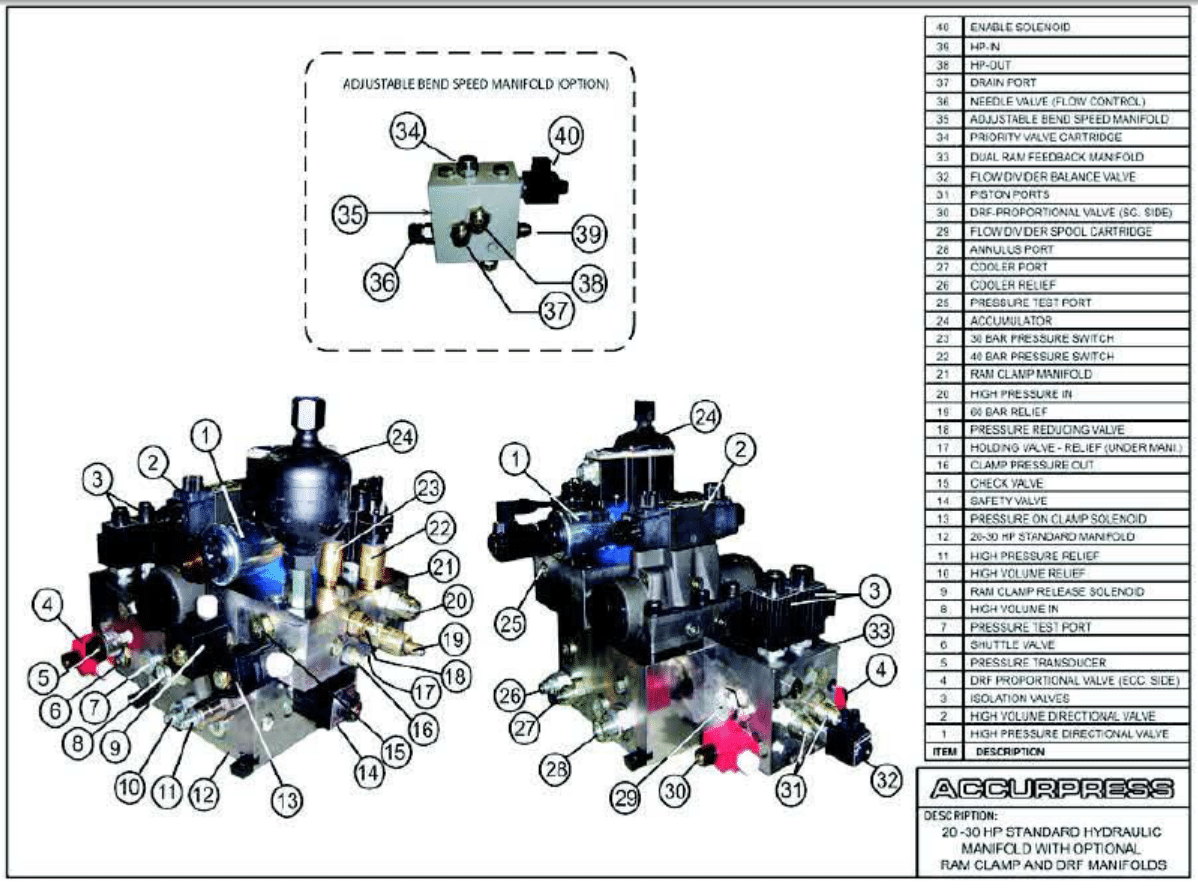

Accurpress Press Brake: 20-30 HP Standard Hydraulic Manifold With Optional Ram Clamp and DRF Manifolds Assembly

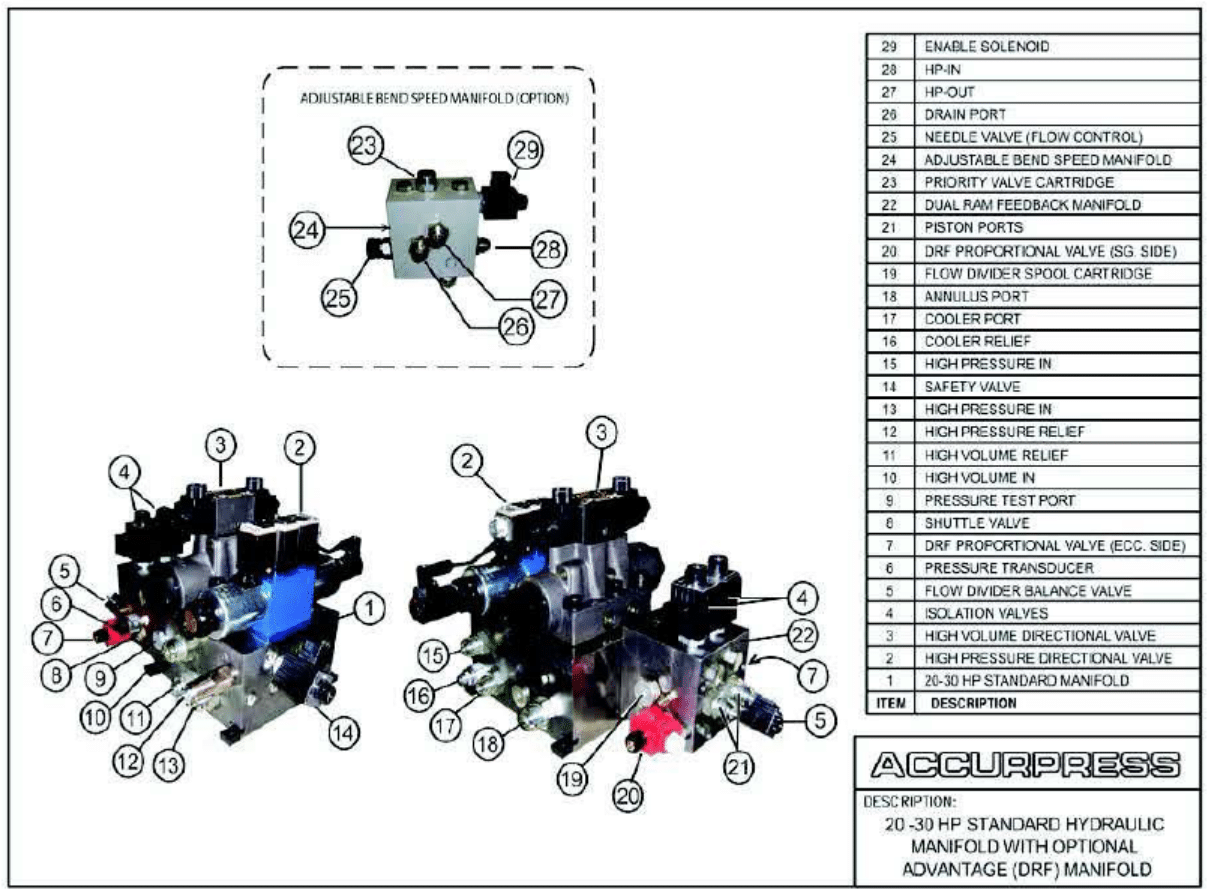

Accurpress Press Brake: 20-30 HP Standard Hydraulic Manifold With Optional Advantage (DRF) Manifold Assembly

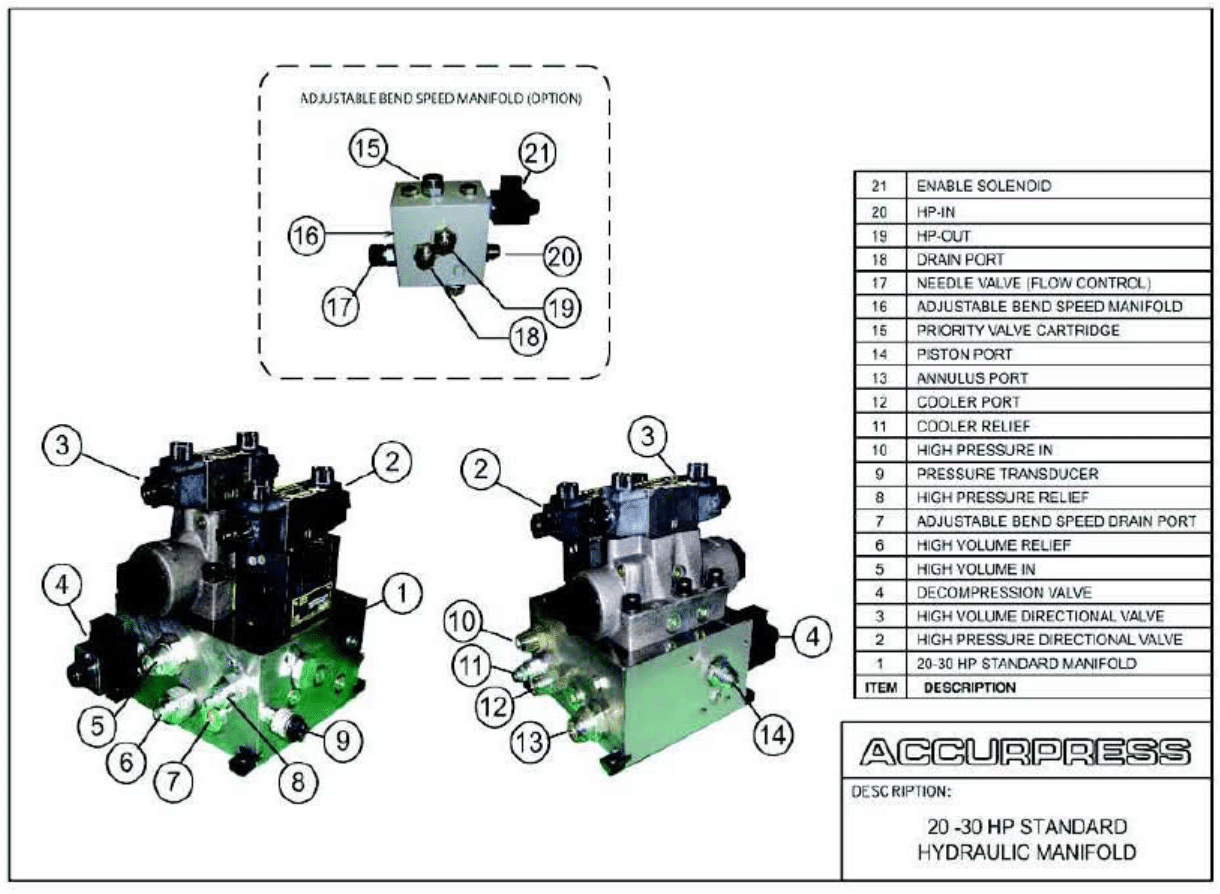

Accurpress Press Brake: 20-30 HP Standard Hydraulic Manifold Assembly

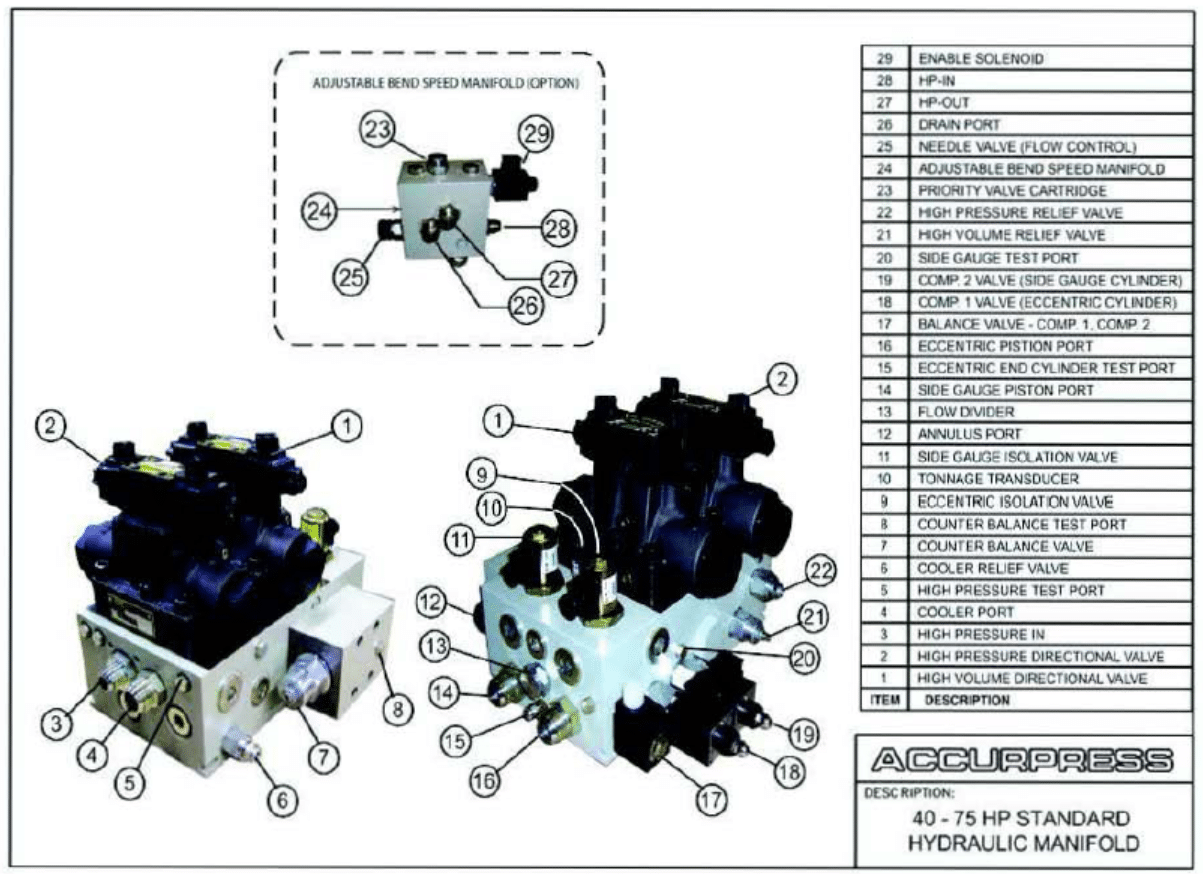

Accurpress Press Brake: 40-75 HP Standard Hydraulic Manifold Assembly

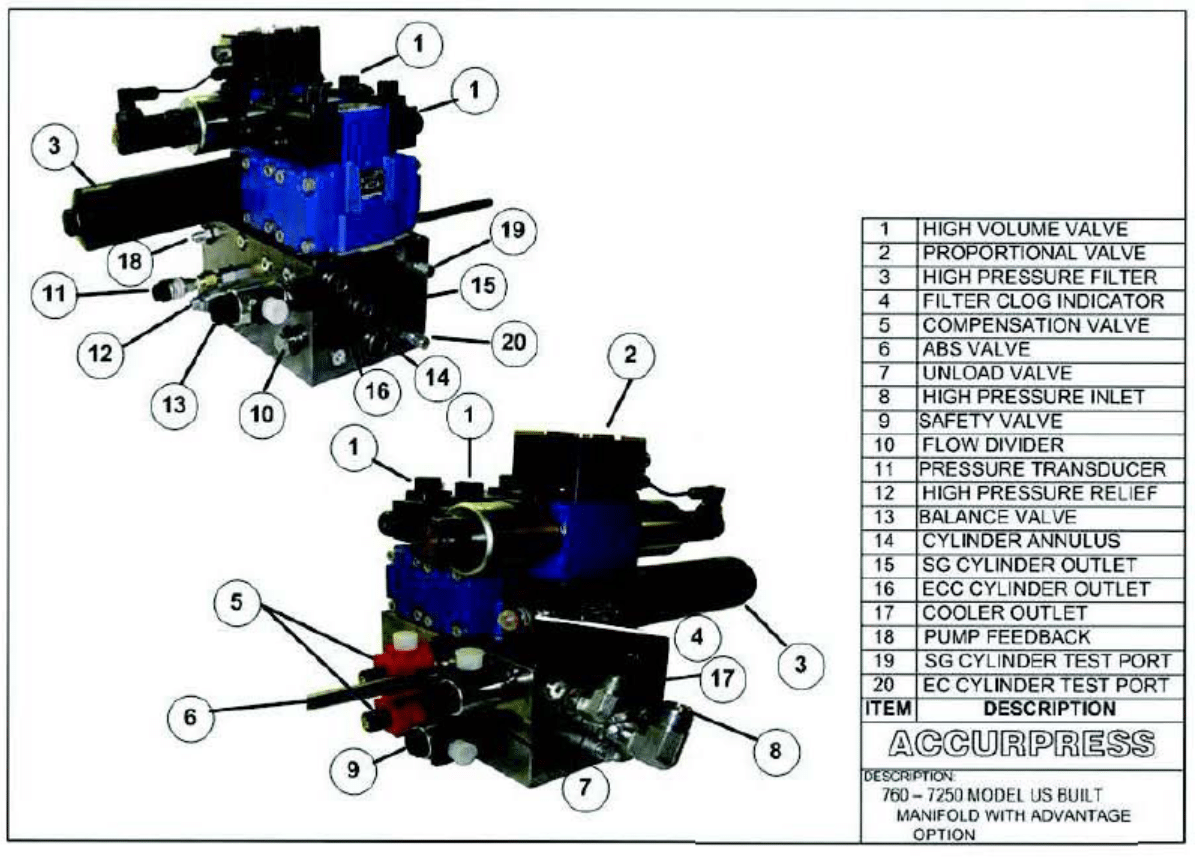

Accurpress Press Brake: 760-7250 Model US Muilt Manifold with Advantage Option

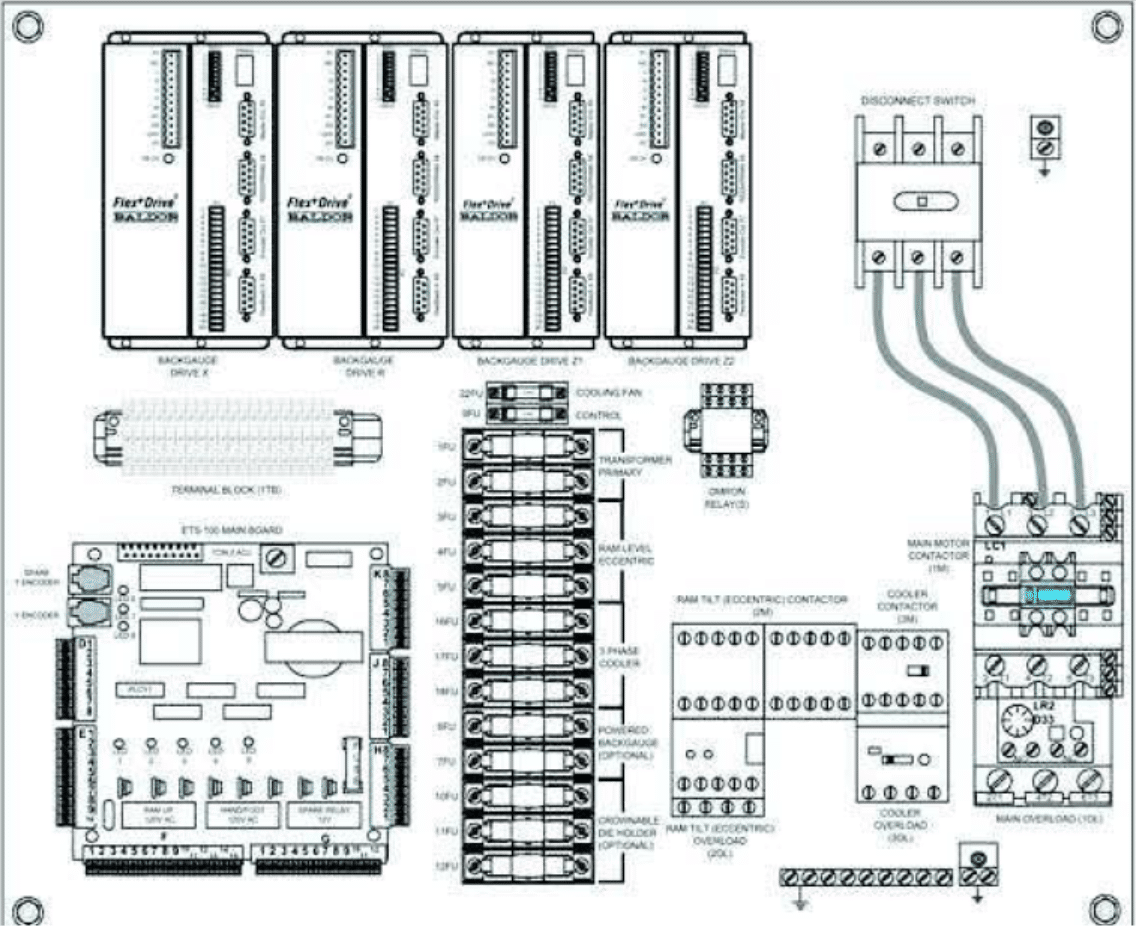

Accurpress Press Brake: Main Electrical Cabinet Back Panel Layout

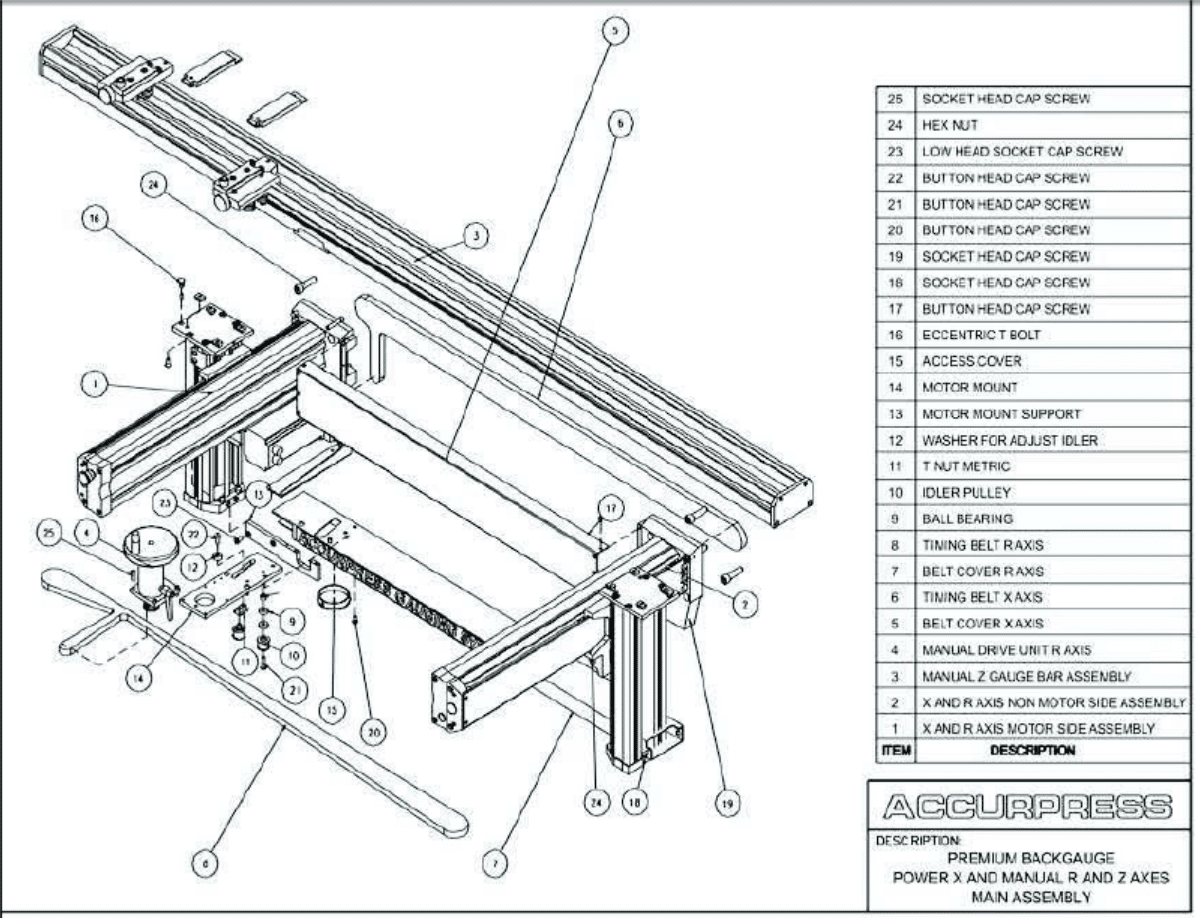

Accurpress Press Brake: Premium Backgauge Power X and Manual R and Z Axes Main Assembly

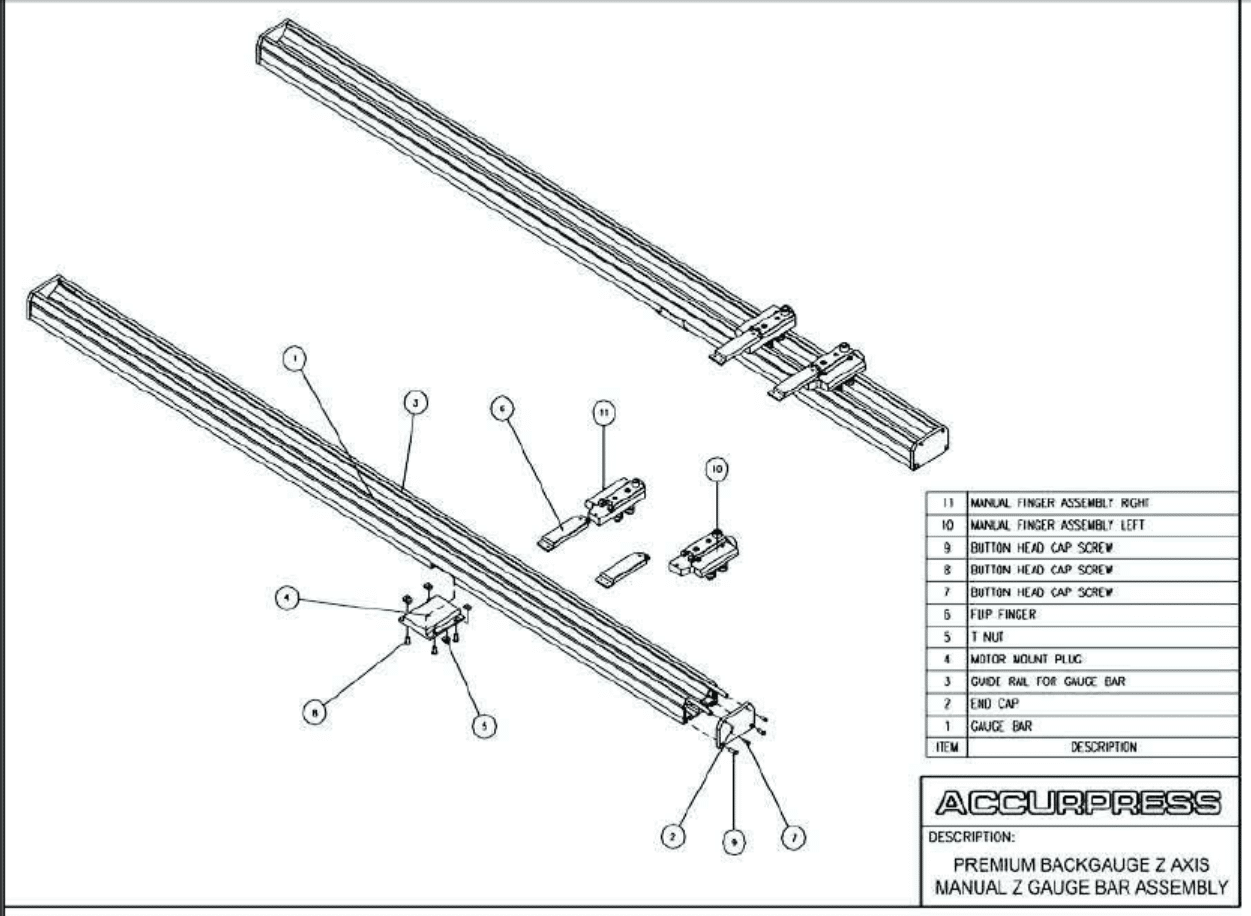

Accurpress Press Brake: Premium Backgauge Z Axis Manual Z Guage Bar Assembly

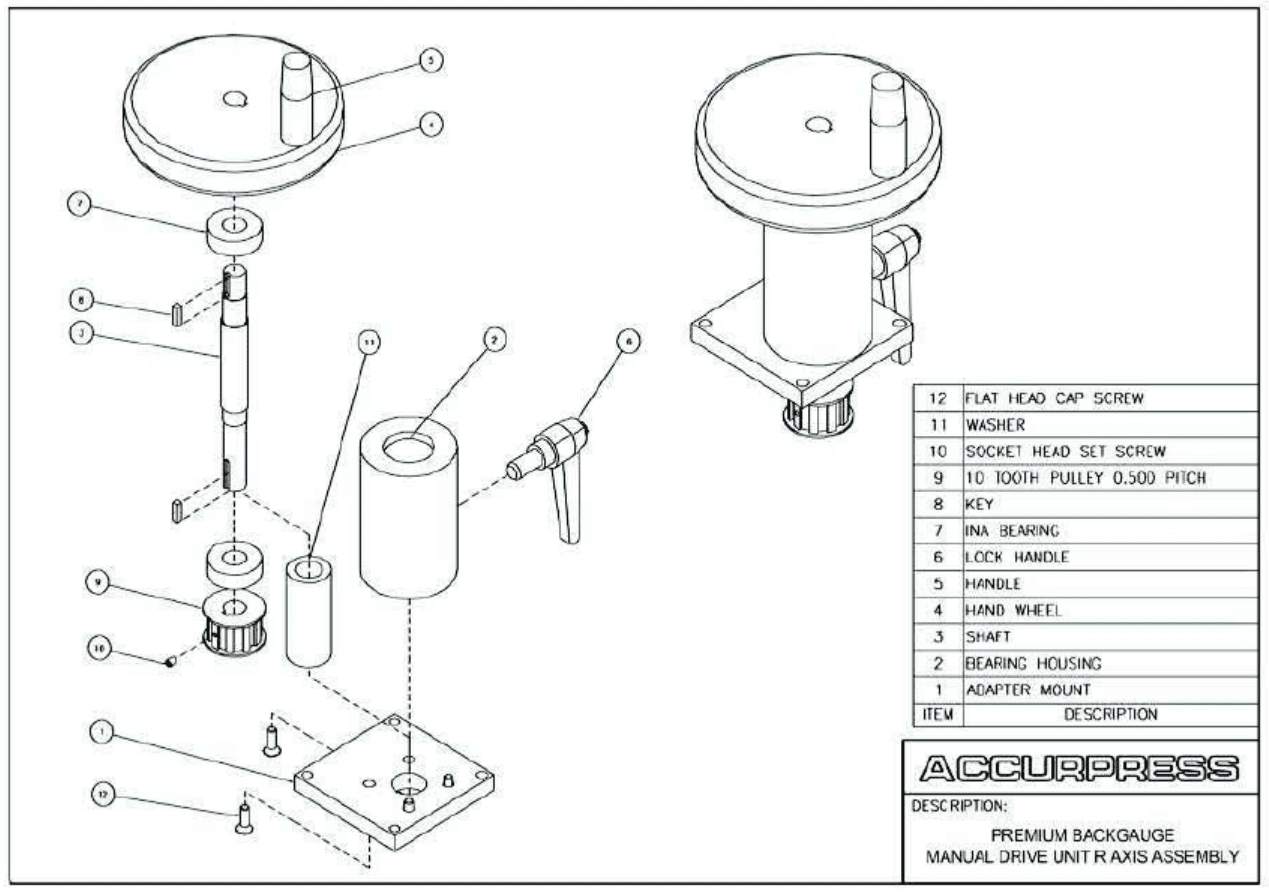

Accurpress Press Brake: Premium Backgauge Manual Drive Unit R Axis Assembly

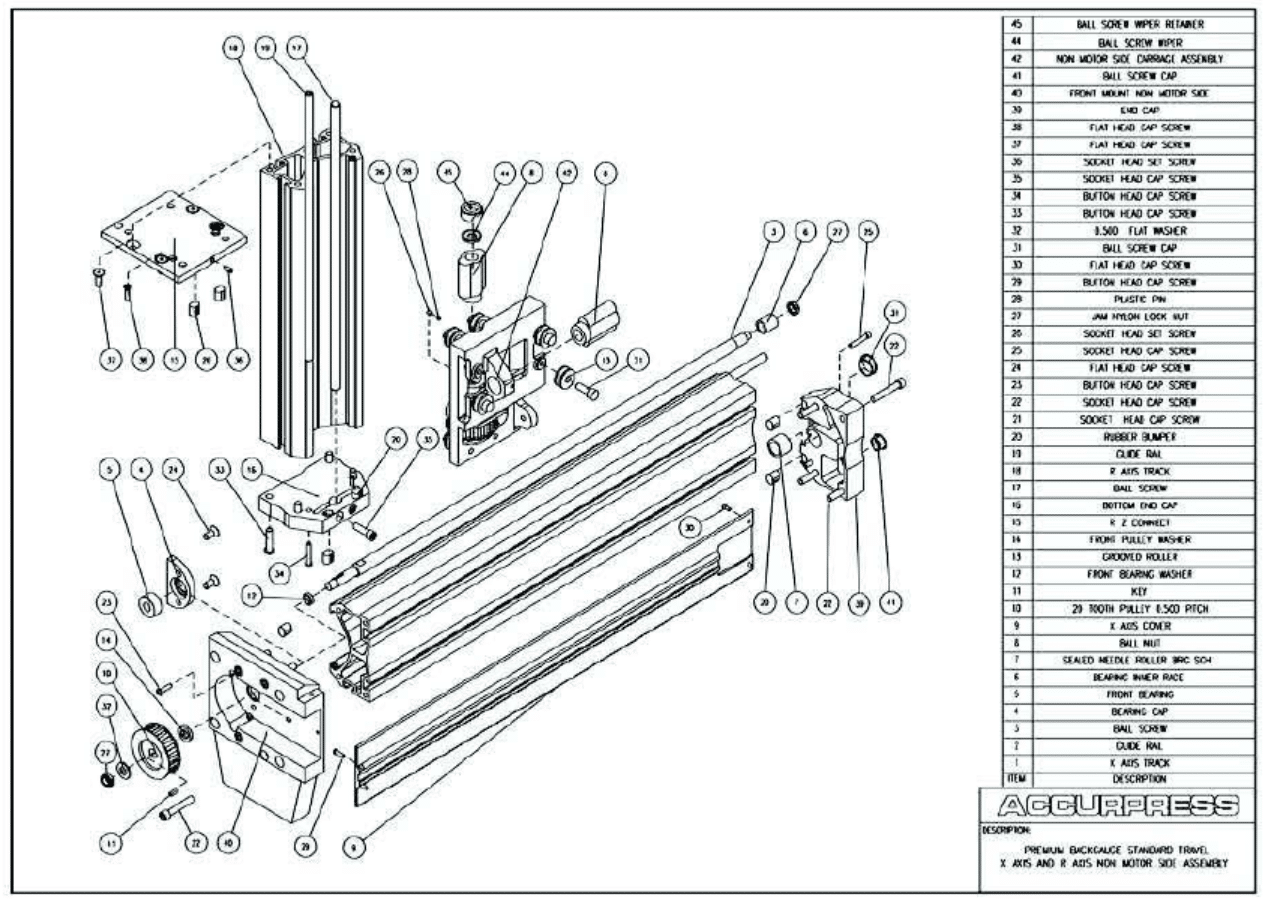

Accurpress Press Brake: Premium Backgauge Standard Travel X Axis and R Axis Non Motor Side Assembly

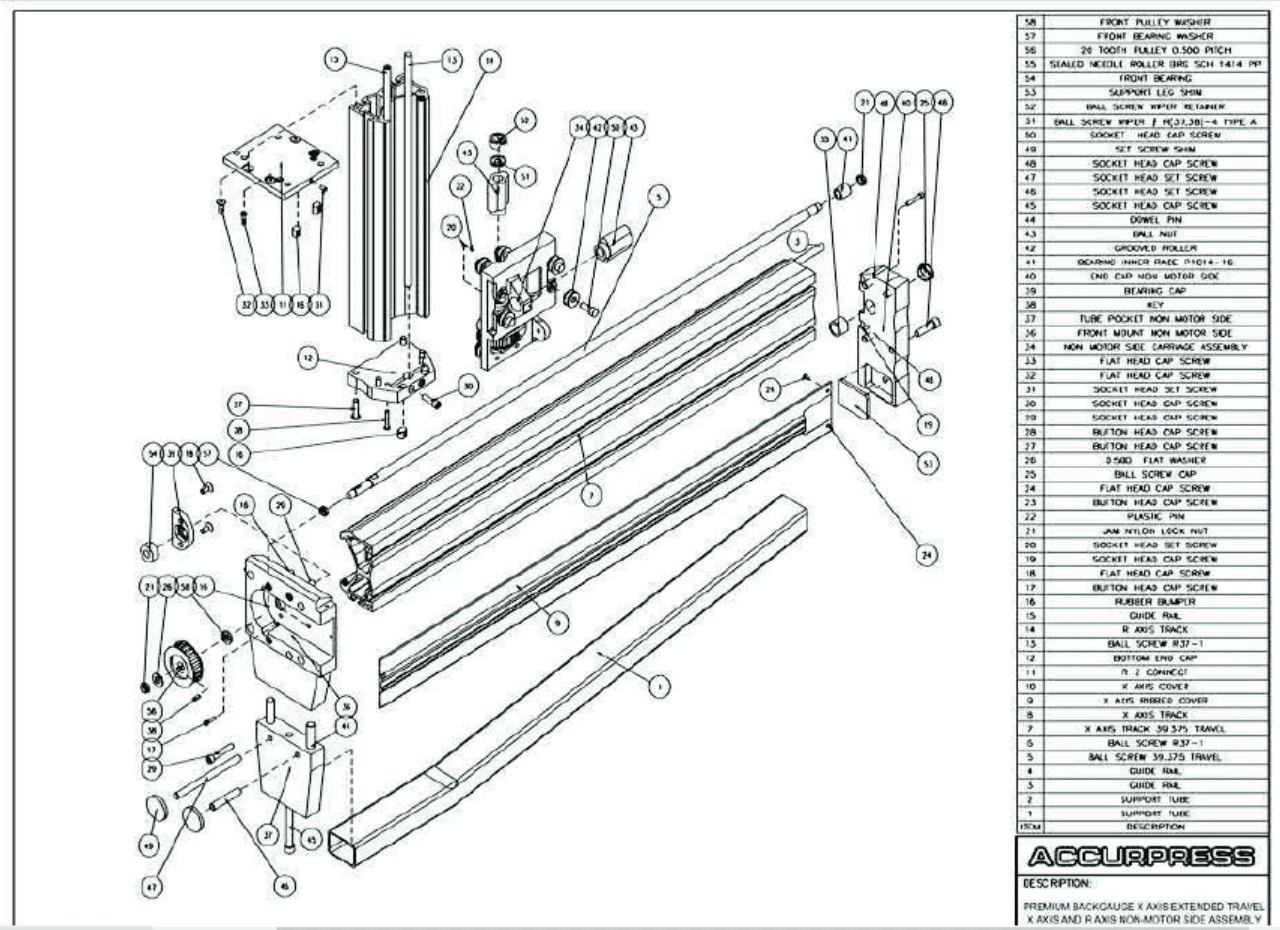

Accurpress Press Brake: Premium Backgauge X Axis Extended Travel X Axis and R Axis Non-Motor Side Assembly

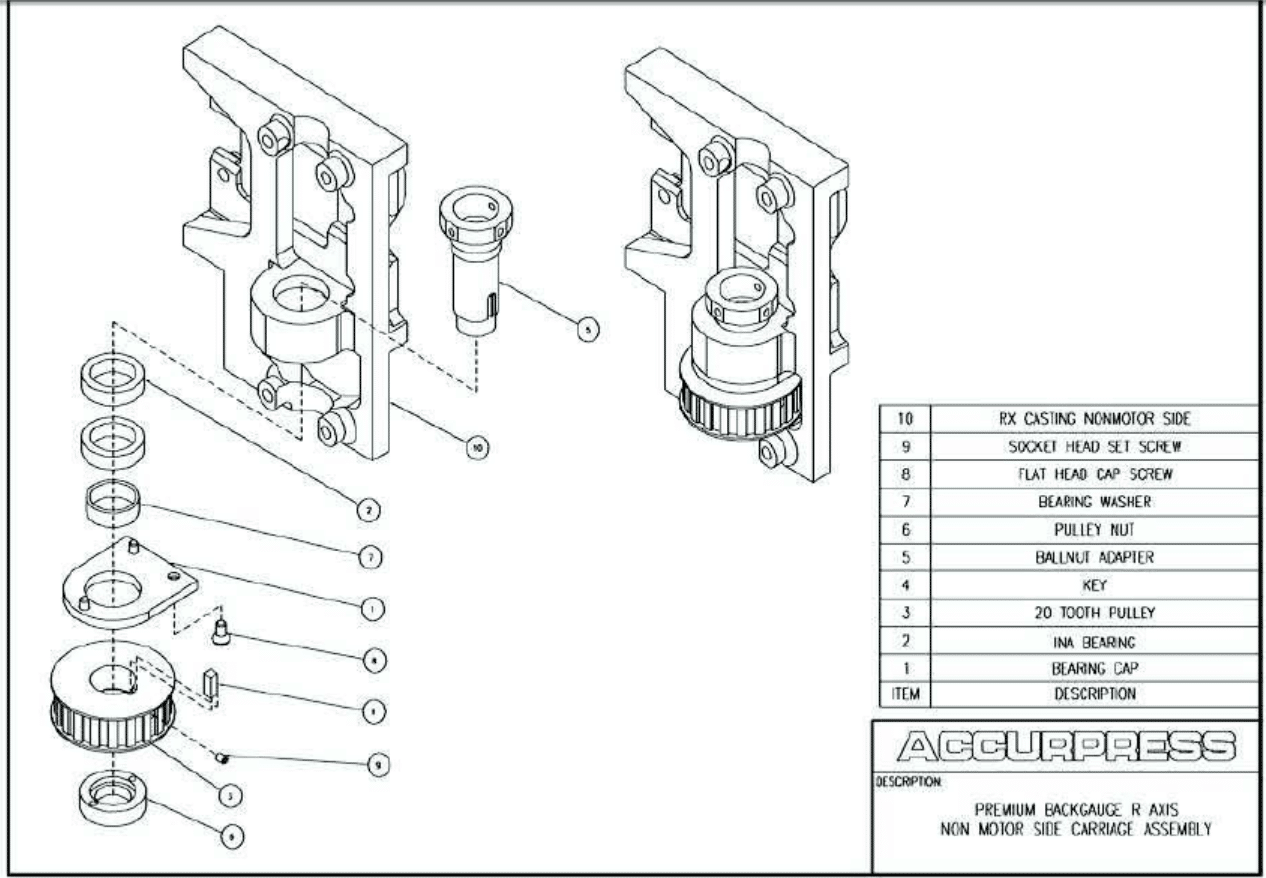

Accurpress Press Brake: Premium Backgauge R Axis Non Motor Side Carriage Assembly

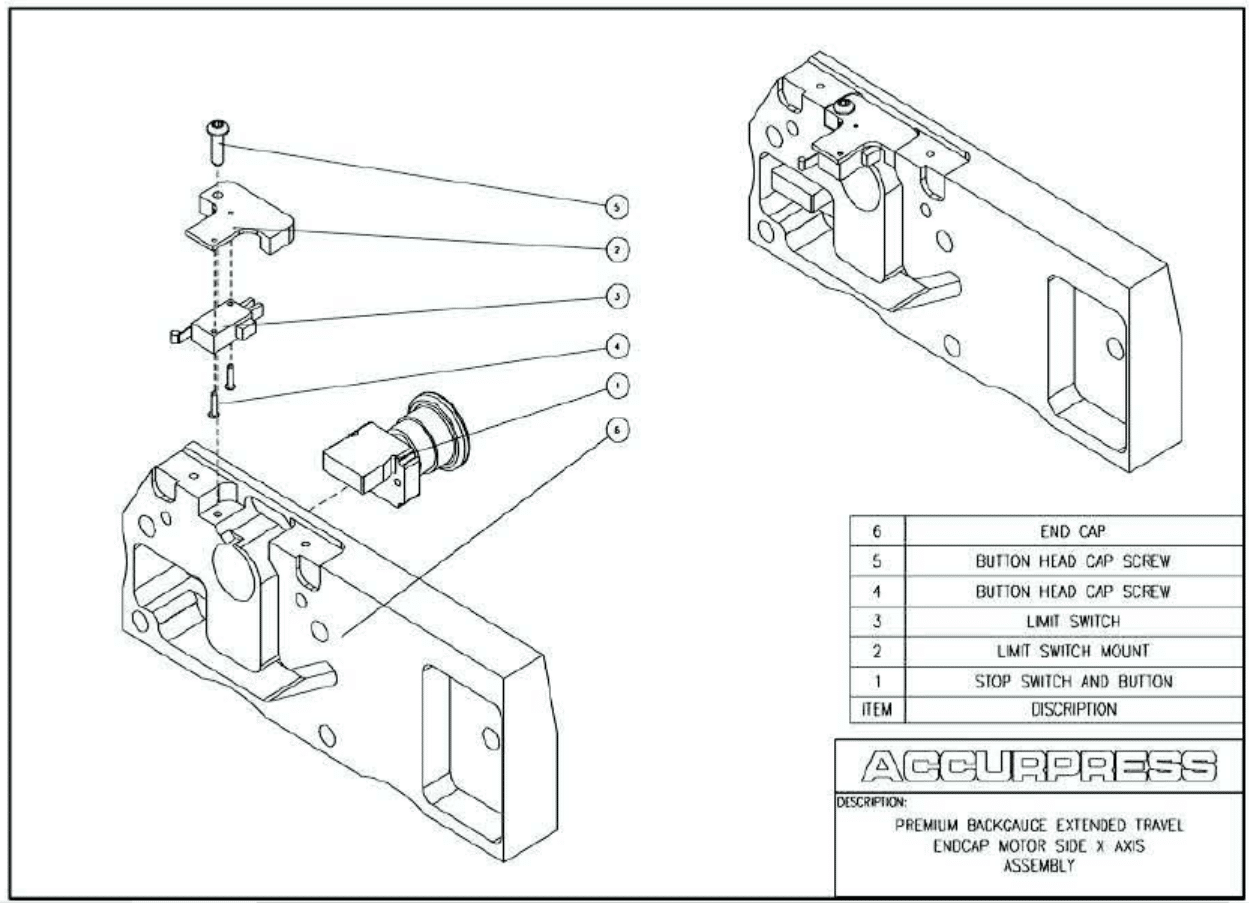

Accurpress Press Brake: Premium Backgauge Extended Travel EndCap Motor Side X Axis Assembly

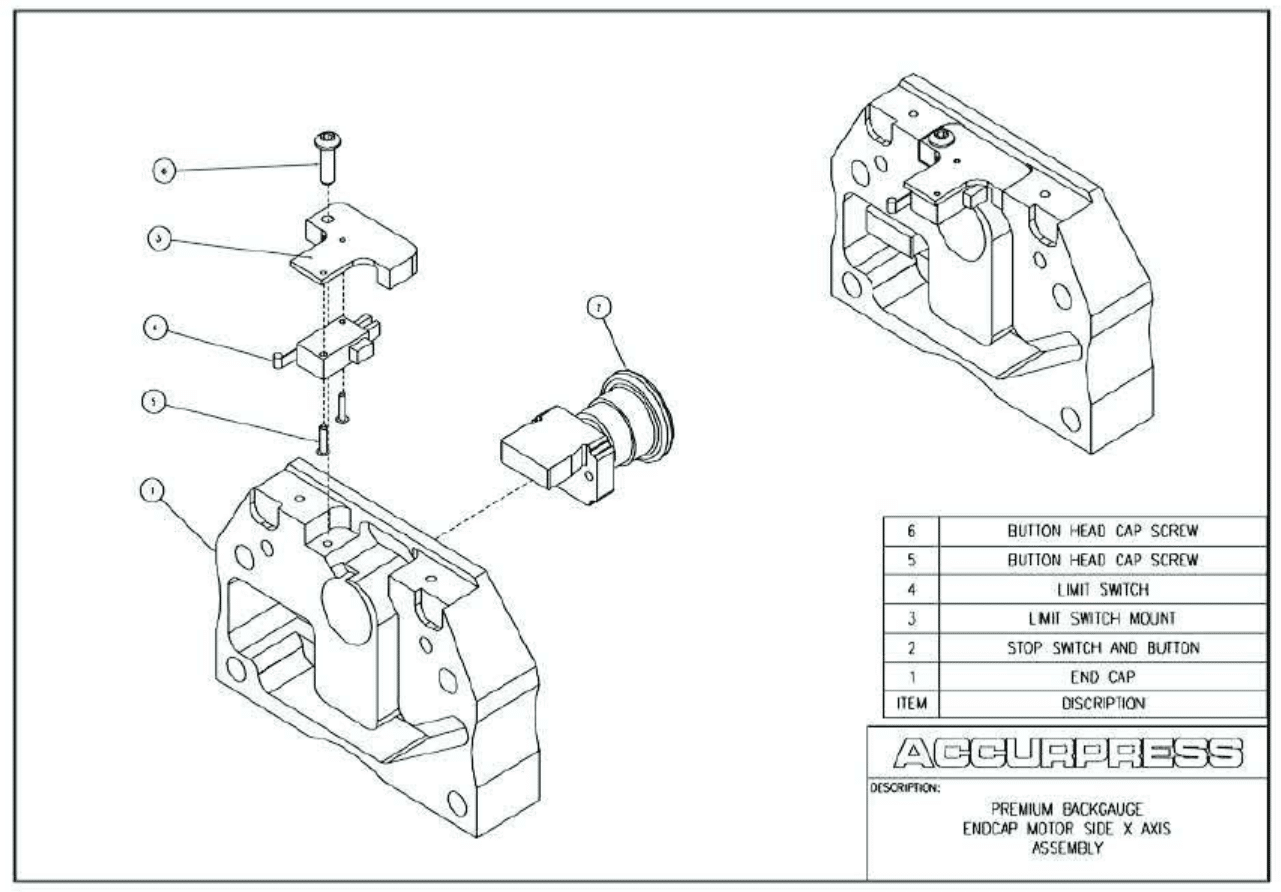

Accurpress Press Brake: Premium Backgauge EndCap Motor Side X Axis Assembly

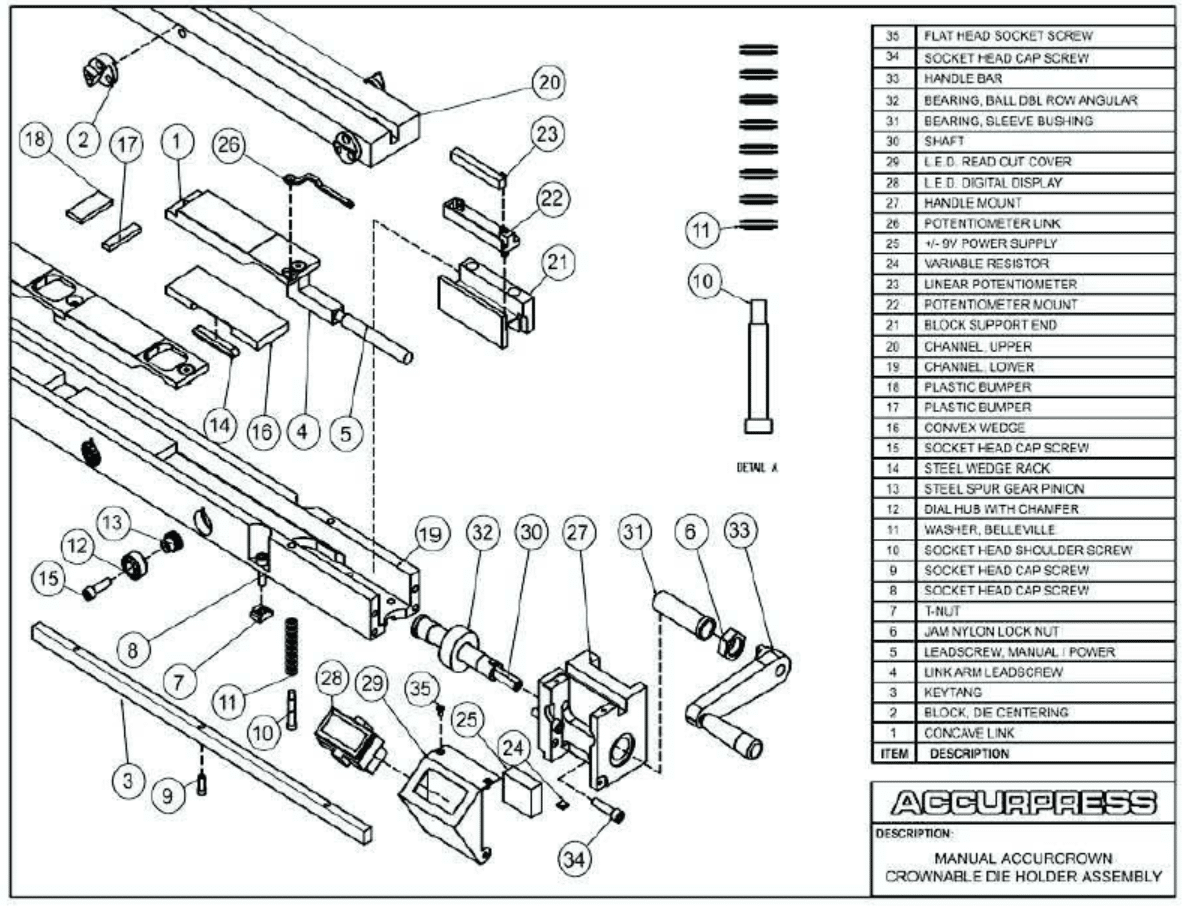

Accurpress Press Brake: Manual Accurcrown Crownable Die Holder Assembly

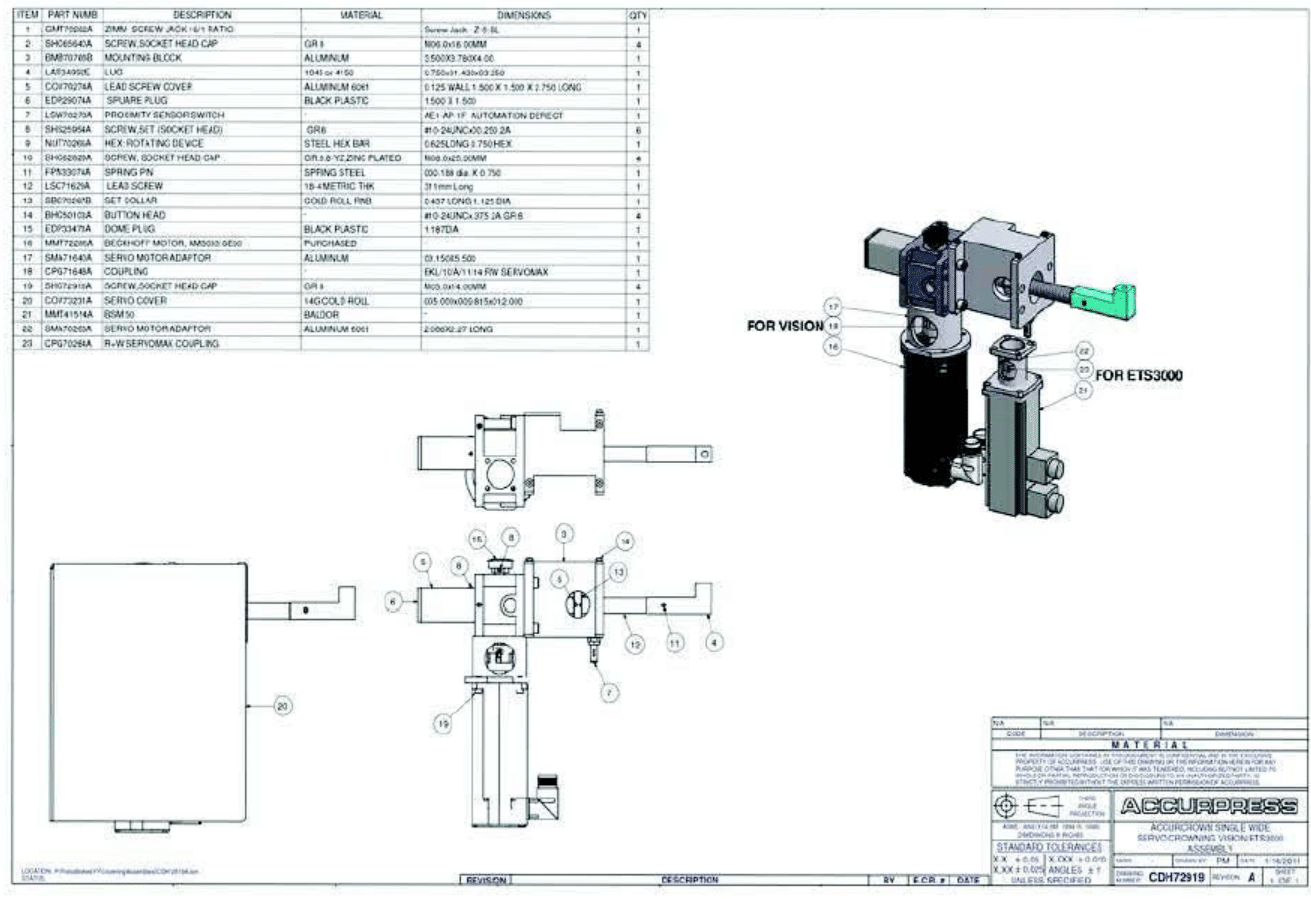

Accurpress Press Brake: Accurcrown Single Wide ServoCrowning Assembly

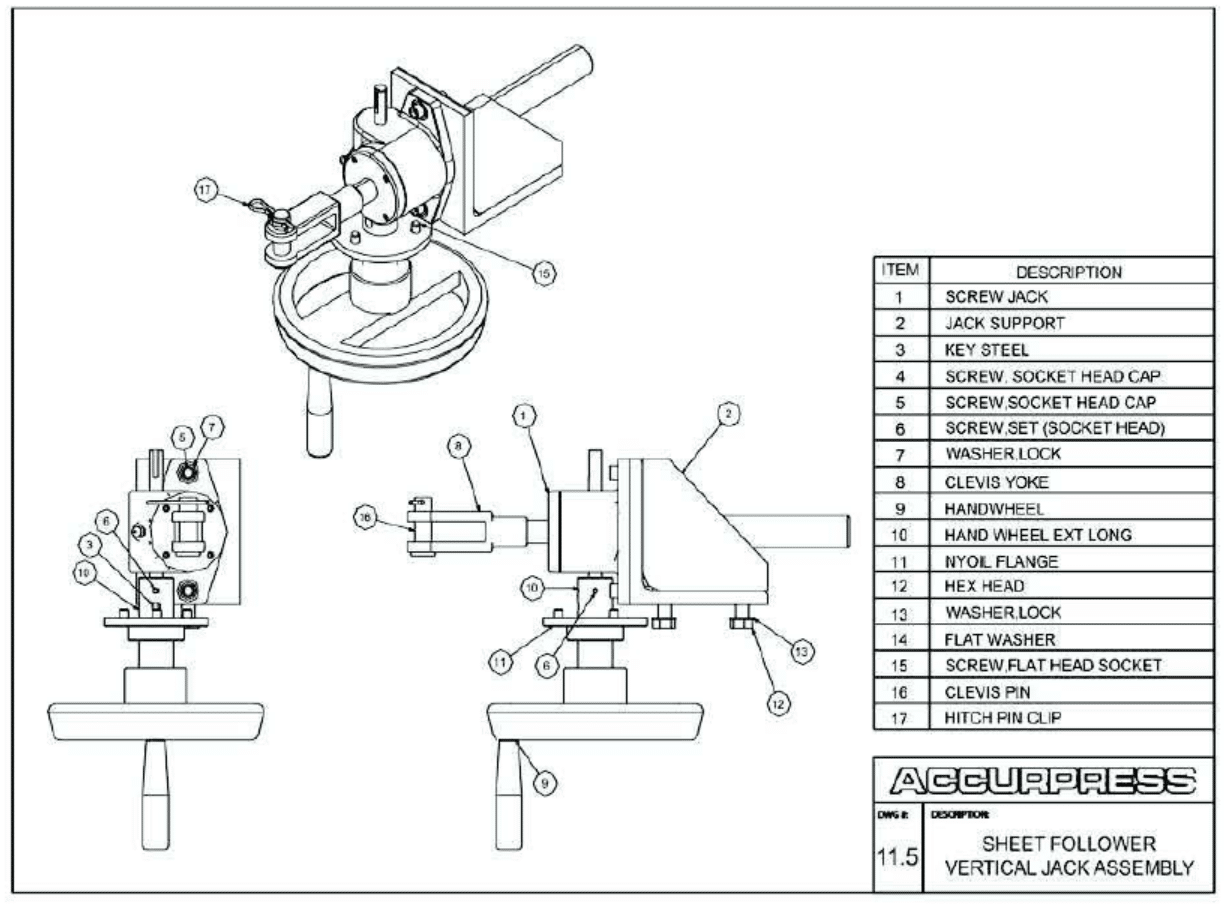

Accurpress Press Brake: Sheet Follower Vertical Jack Assembly

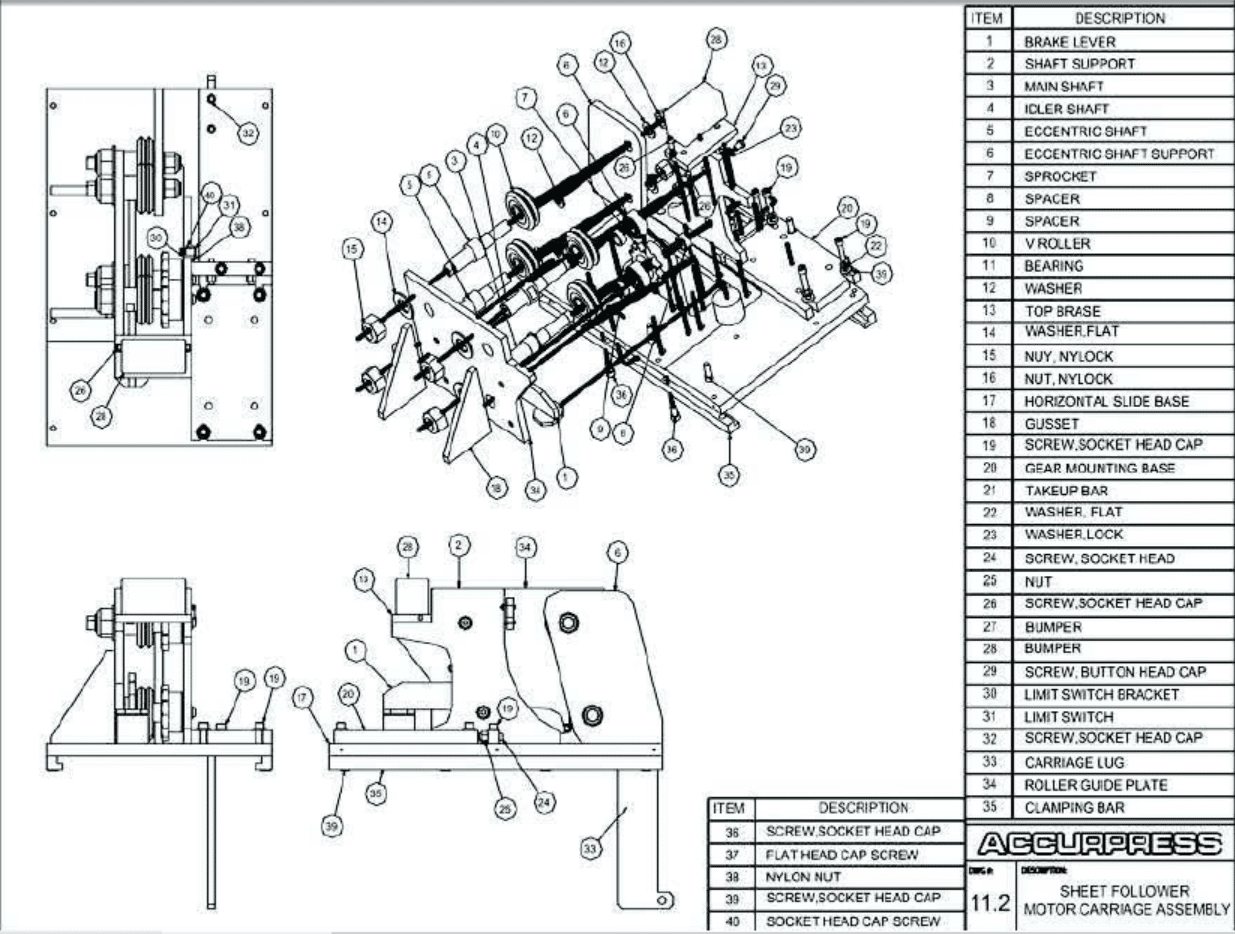

Accurpress Press Brake: Sheet Follower Motor Carriage Assembly (Optional)

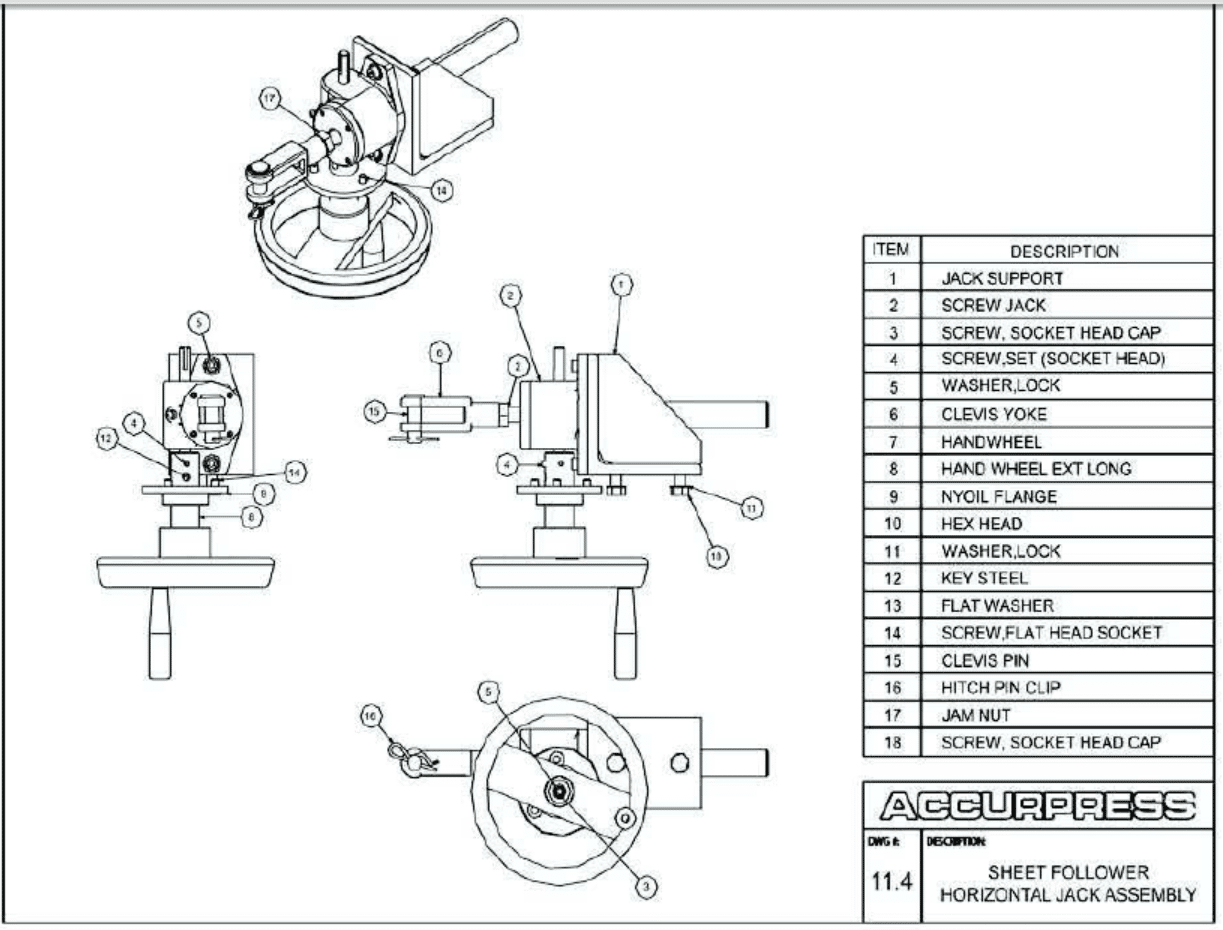

Accurpress Press Brake: Sheet Follower Horizontal Jack Assembly (Optional)

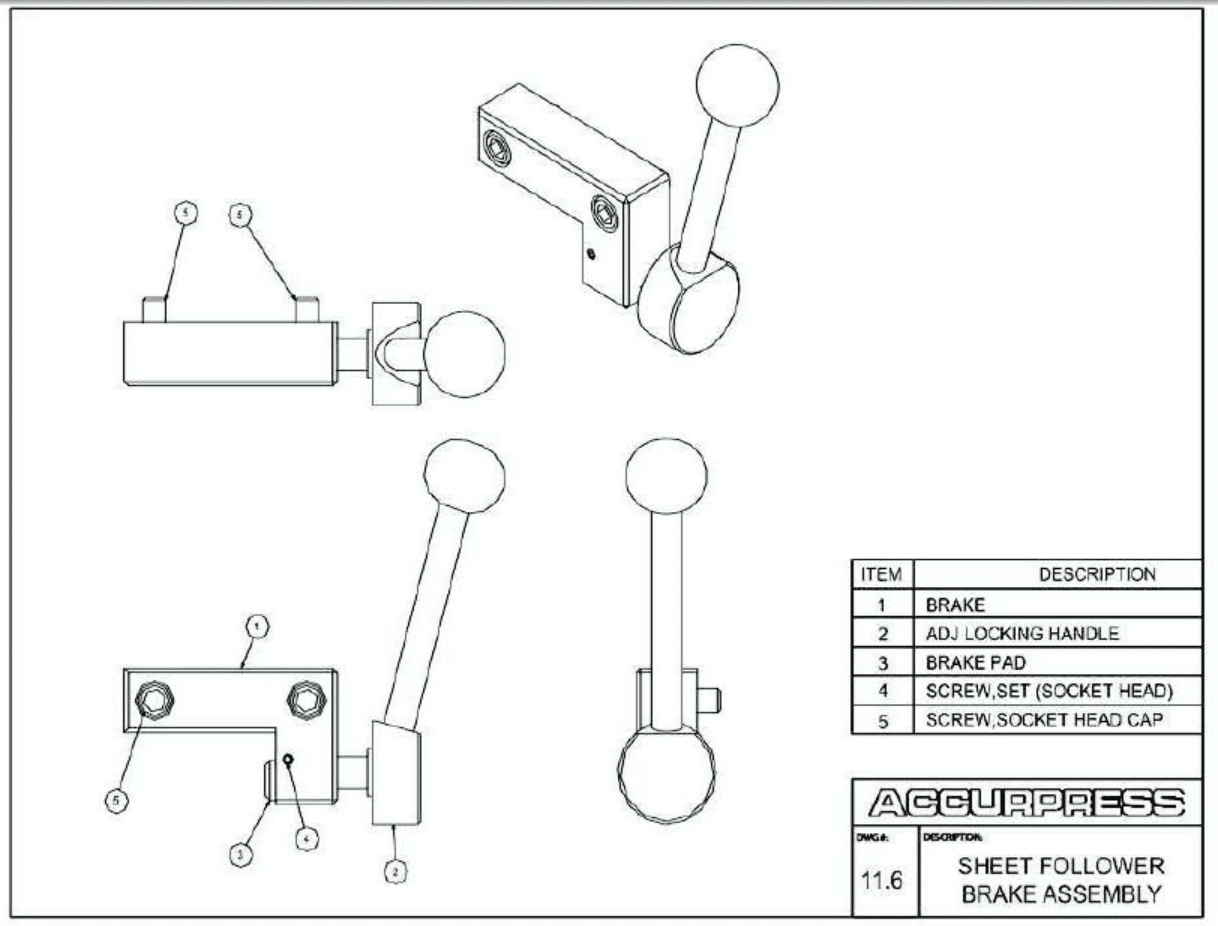

Accurpress Press Brake: Sheet Follower Brake Assembly

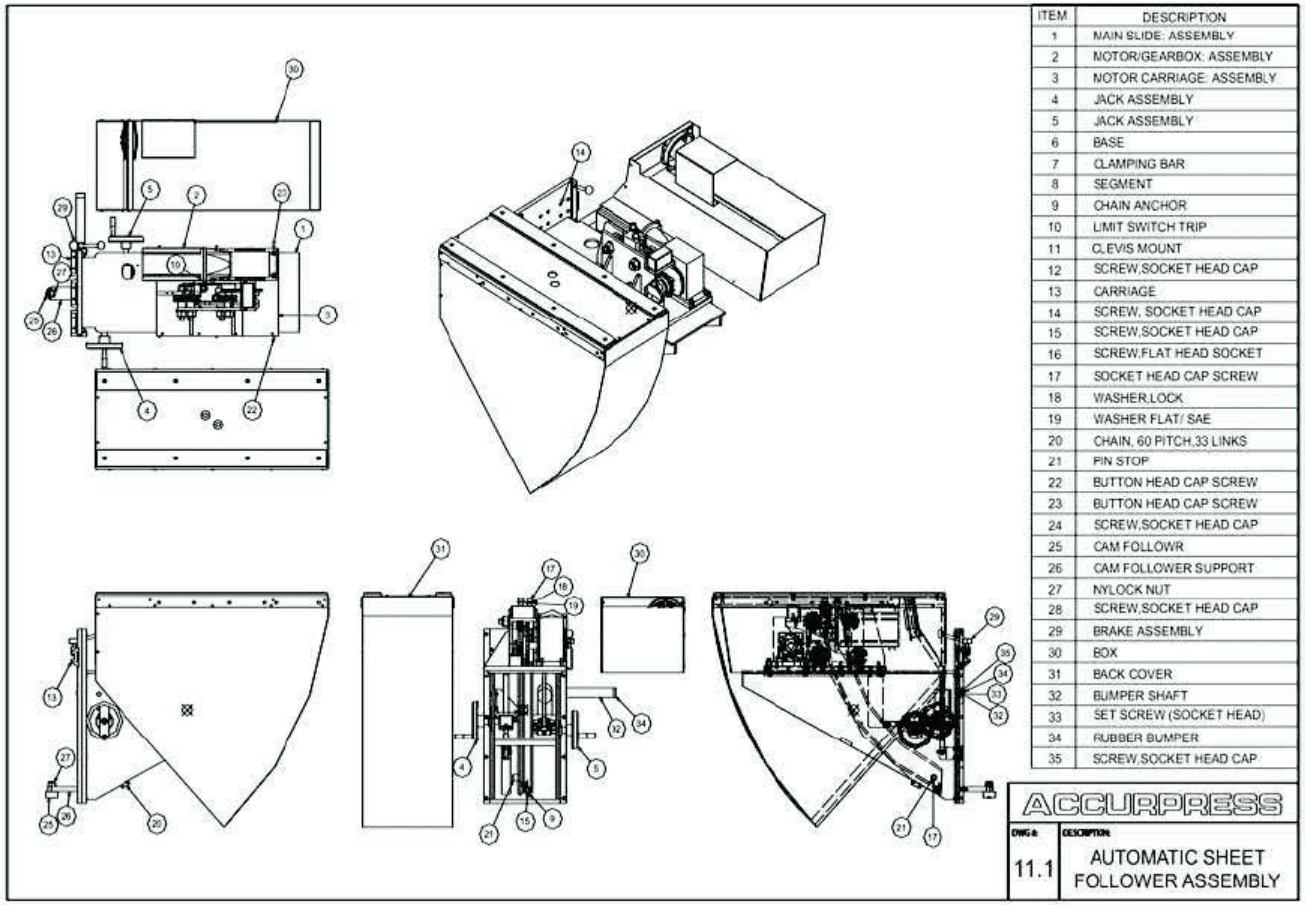

Accurpress Press Brake: Automatic Sheet Follower (Optional)

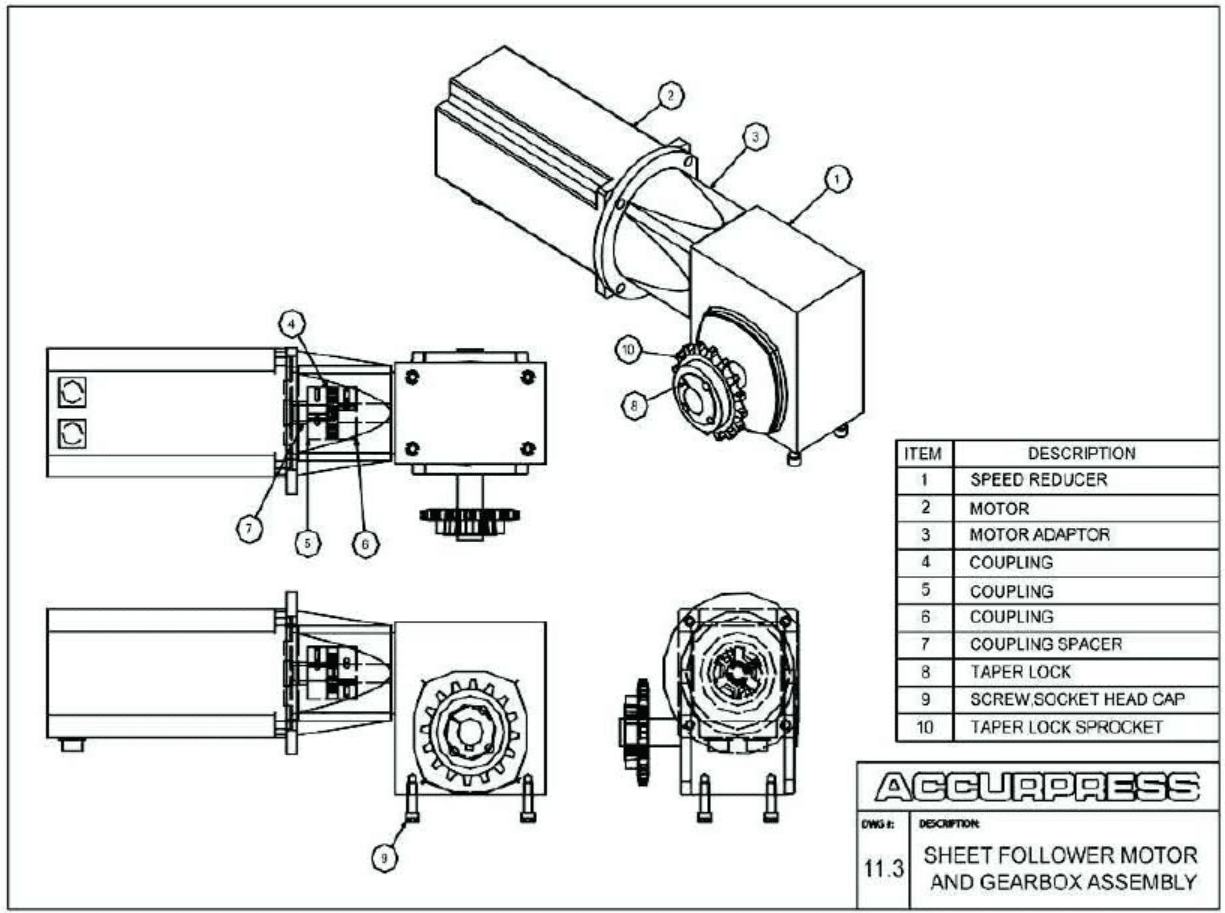

Accurpress Press Brake: Sheet Follower Motor and Gearbox Assembly (Optional)

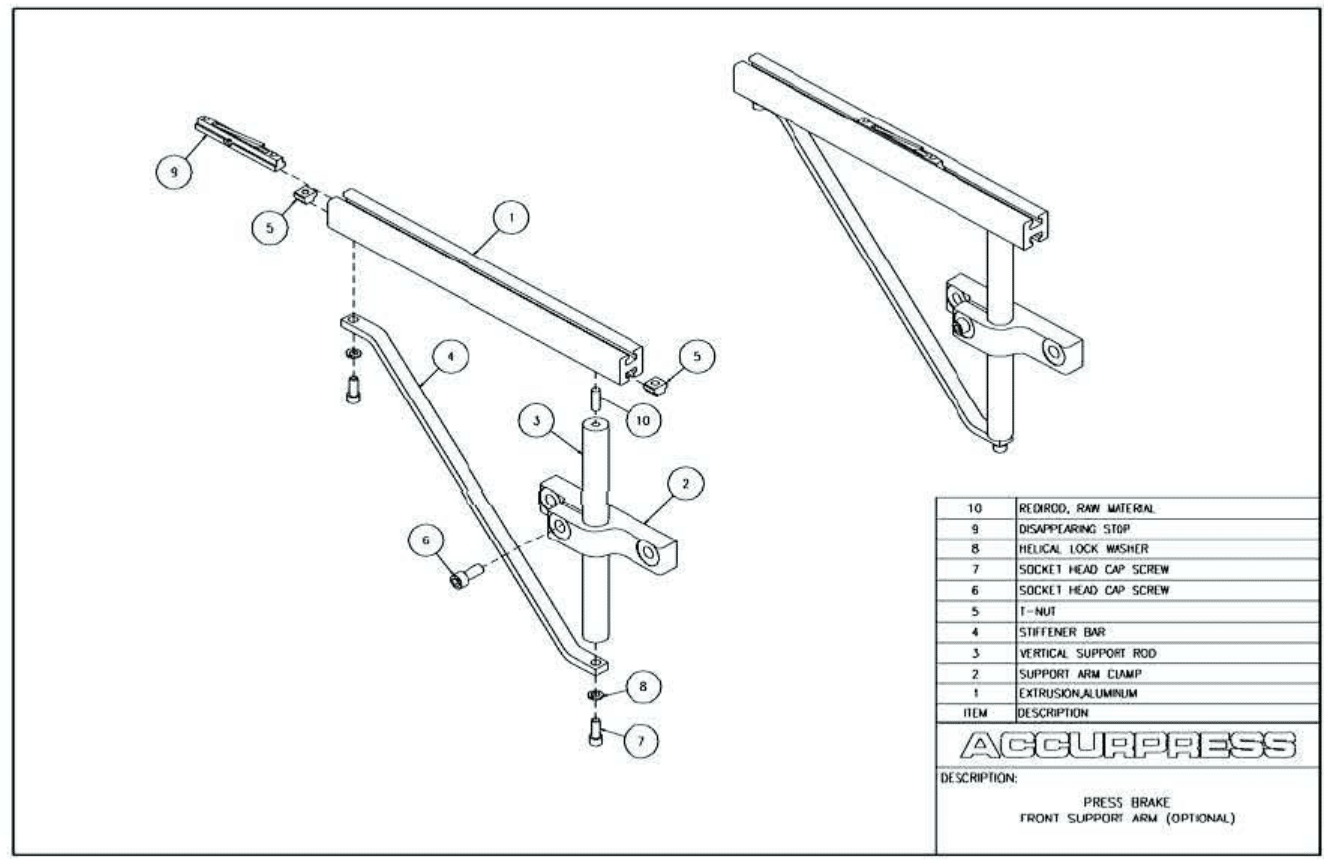

Accurpress Press Brake: Press Brake Front Support Arm Assembly (Optional)

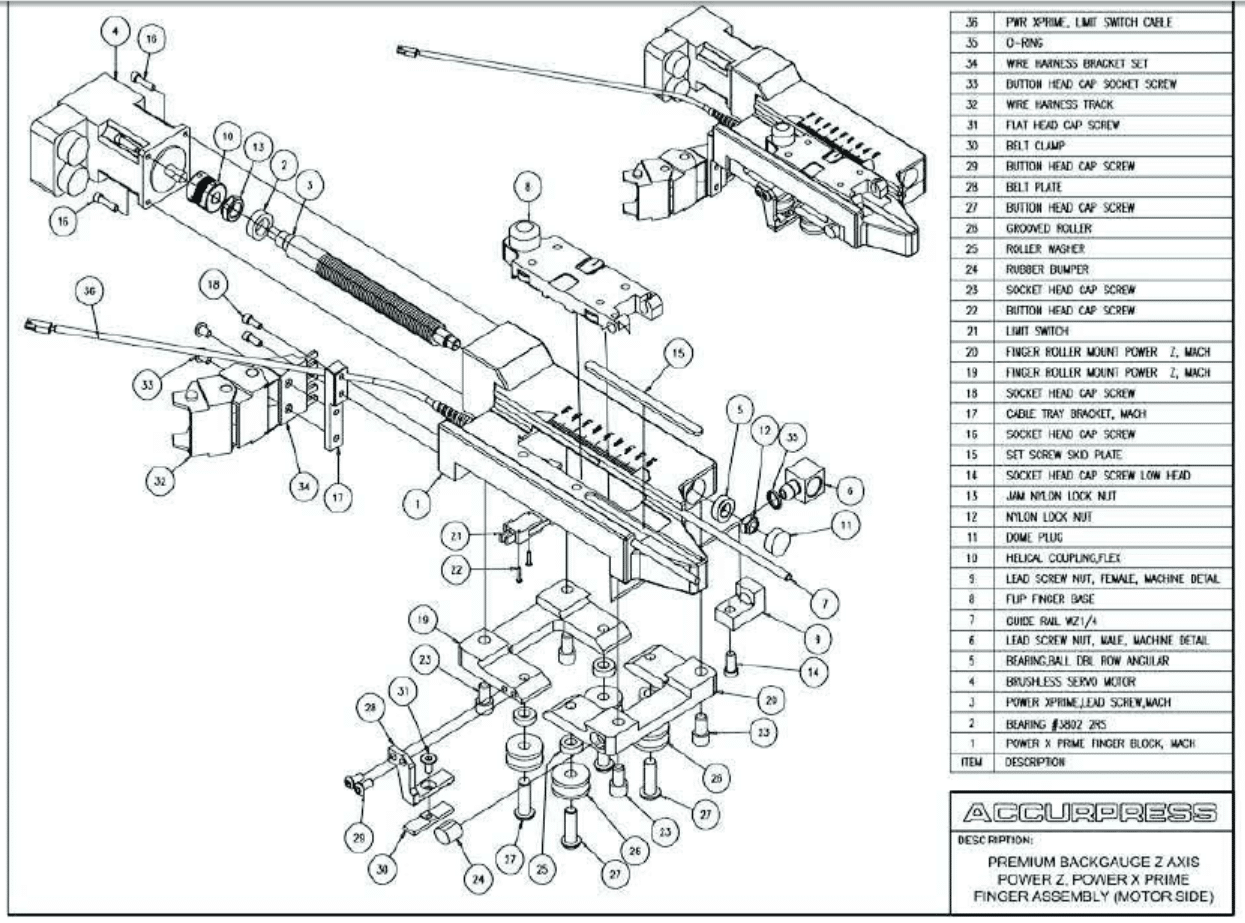

Accurpress Press Brake: Premium Backgauge Z Axis, Power Z, Power X Prime Finger Assembly (Motor Side)

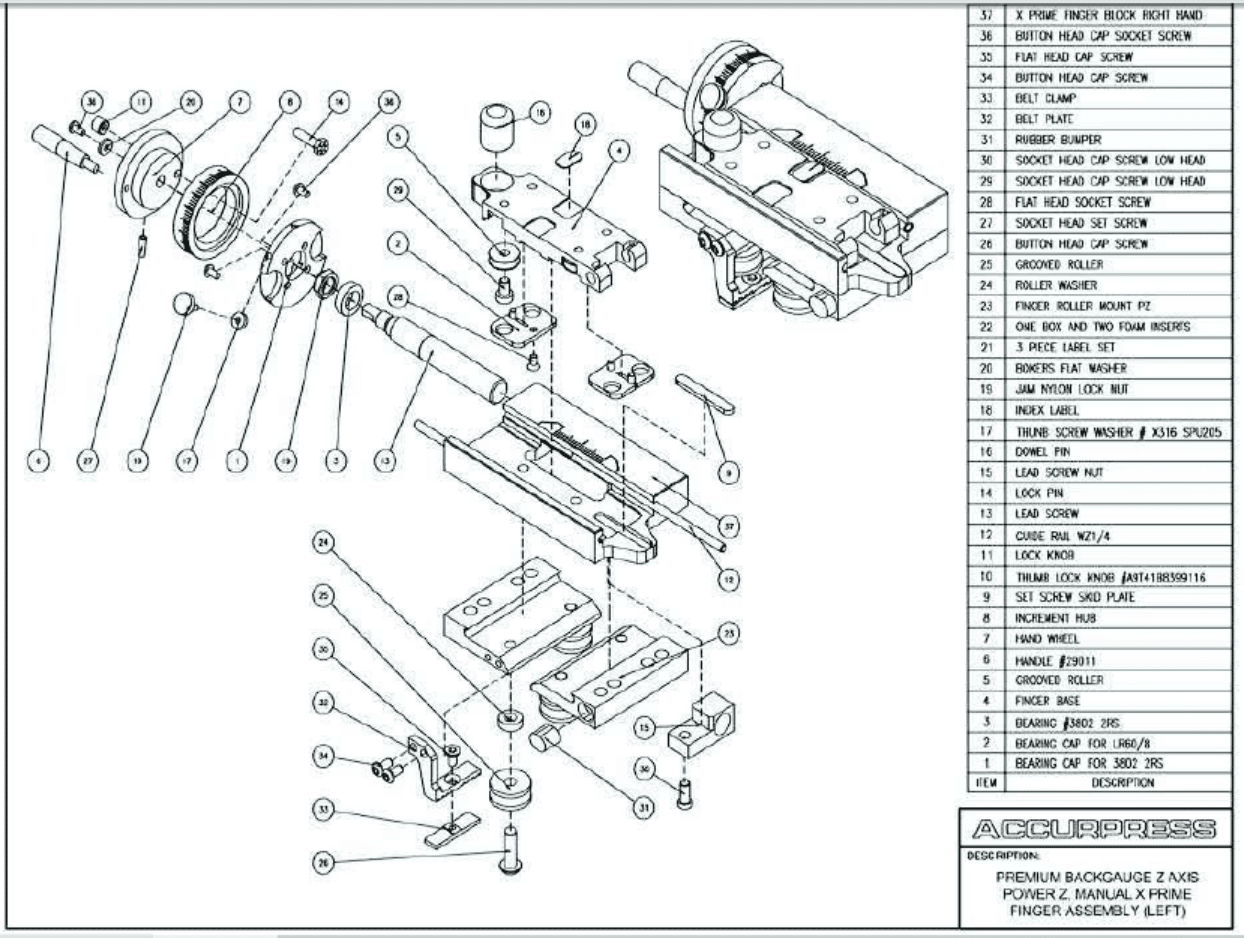

Accurpress Press Brake: Premium Backgauge Z Axis, Power Z, Manual X Prime Finger Assembly (Left)

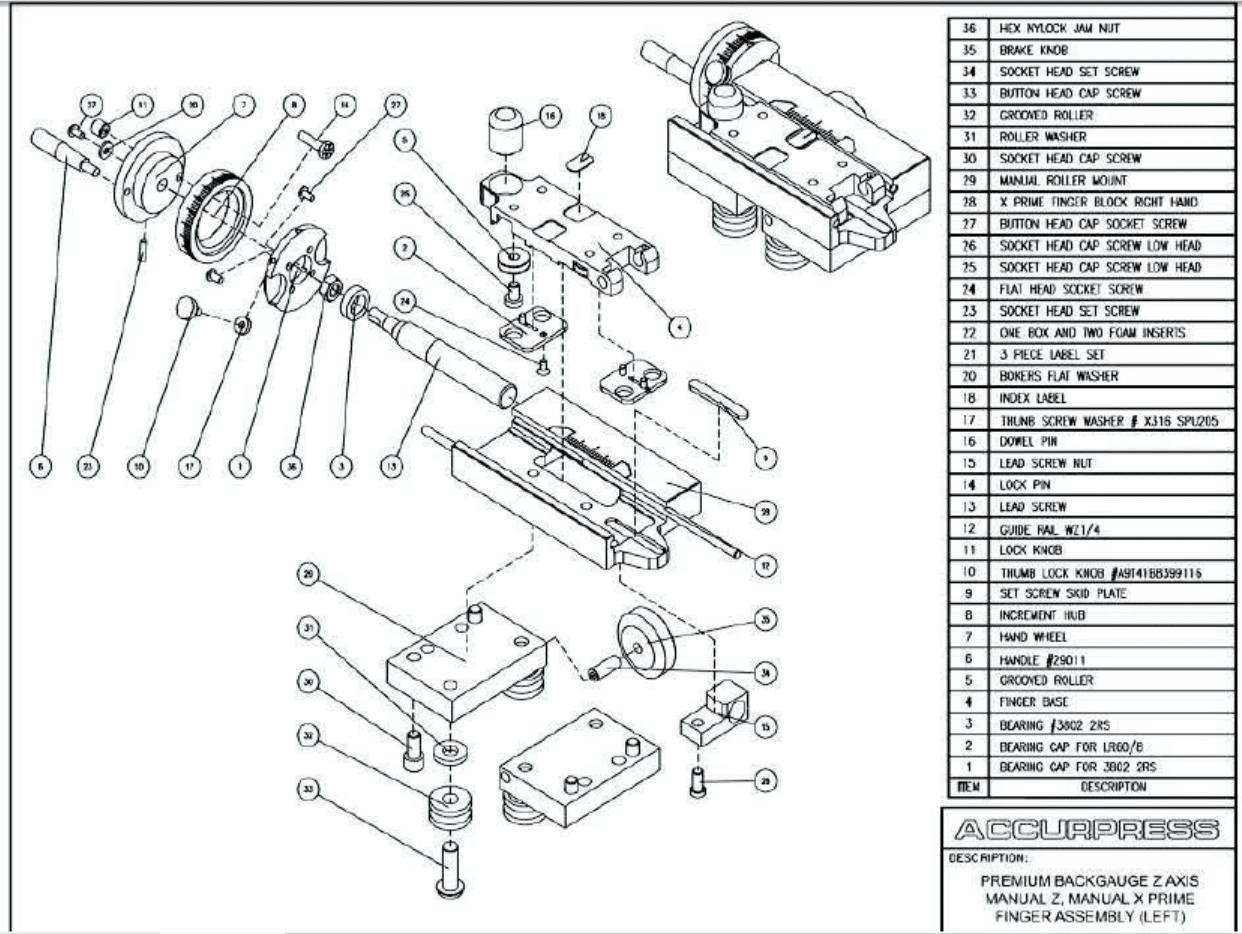

Accurpress Press Brake: Premium Backgauge Z Axis, Manual Z, Manual X Prime Finger Assembly (Left)

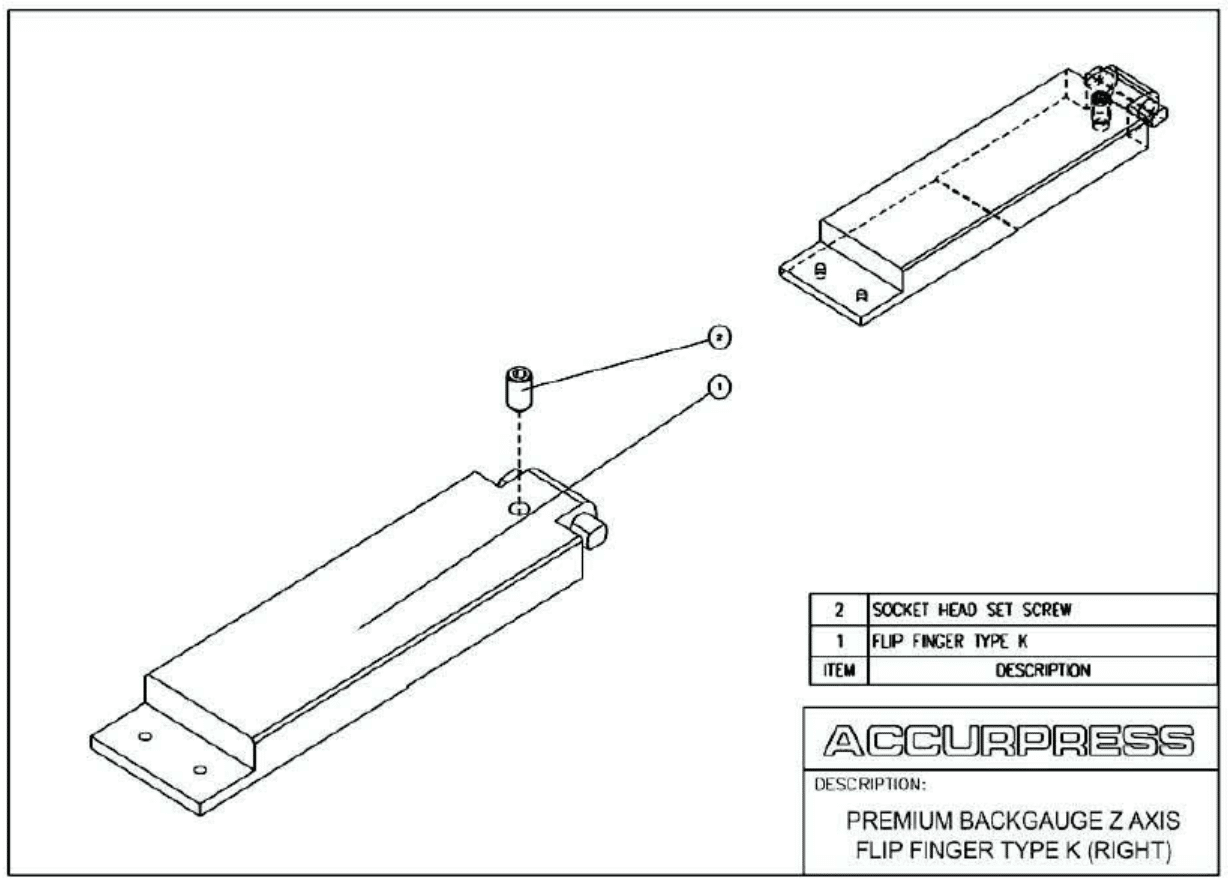

Accurpress Press Brake: Premium Backgauge Z Axis, Flip Finger, Type K (Right) Assembly

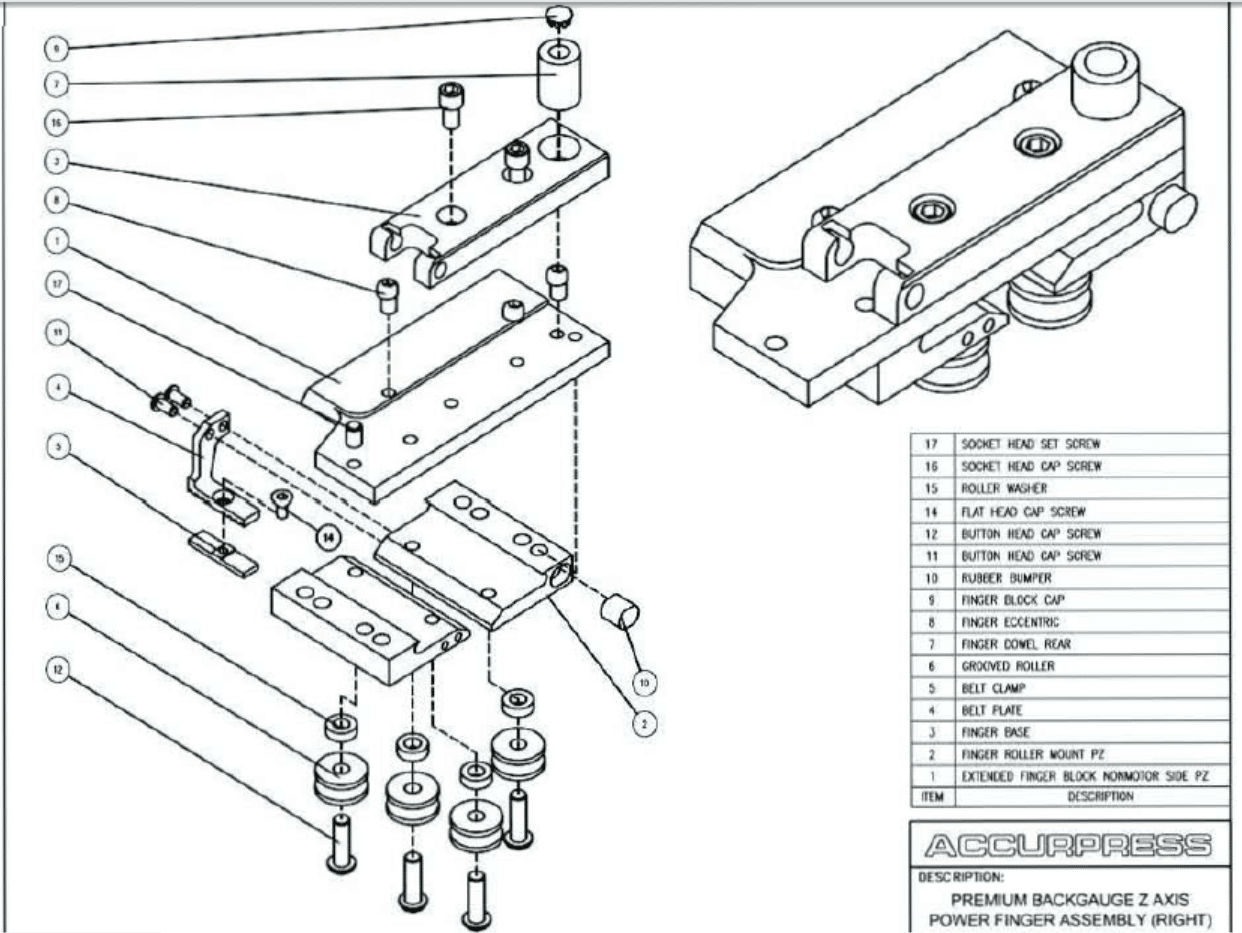

Accurpress Press Brake: Premium Backgauge Z Axis Power Finger Assembly (Right)

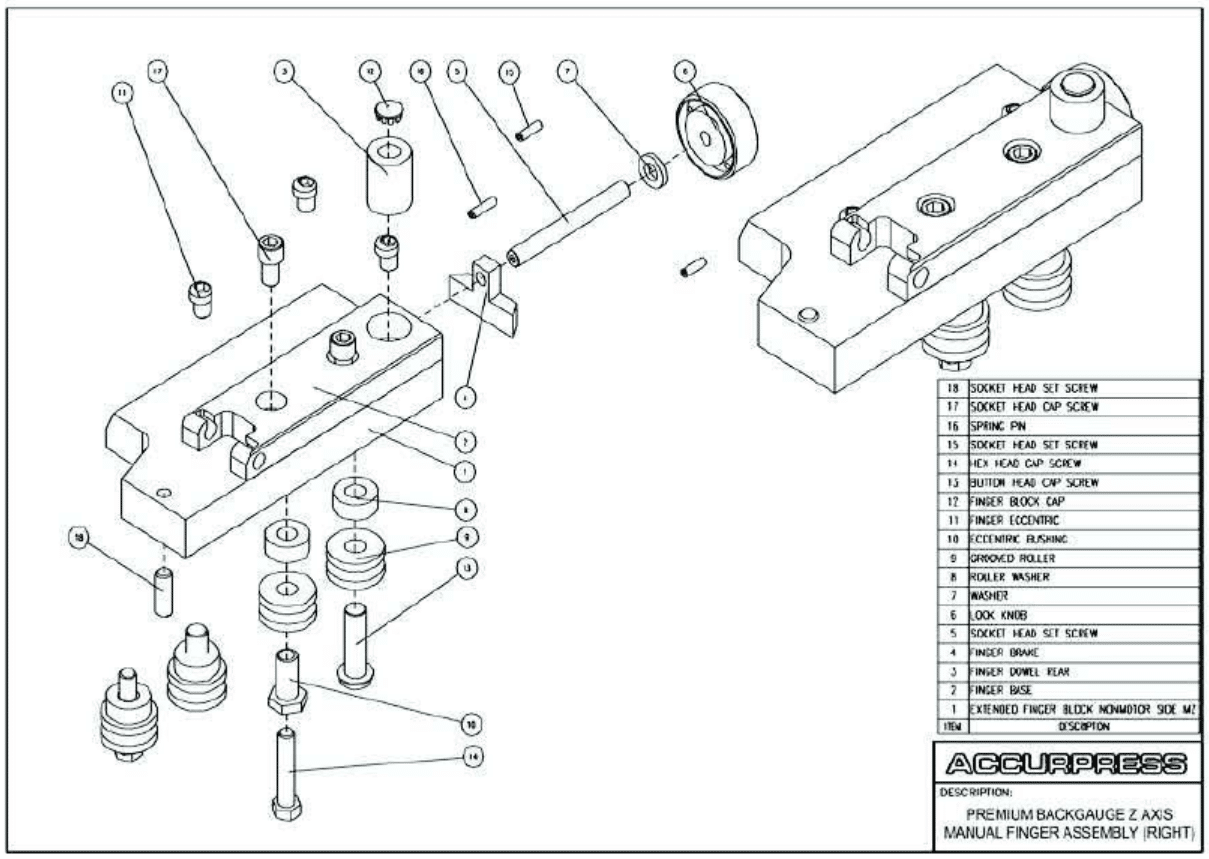

Accurpress Press Brake: Premium Backgauge Z Axis Manual Finger Assembly (Right)

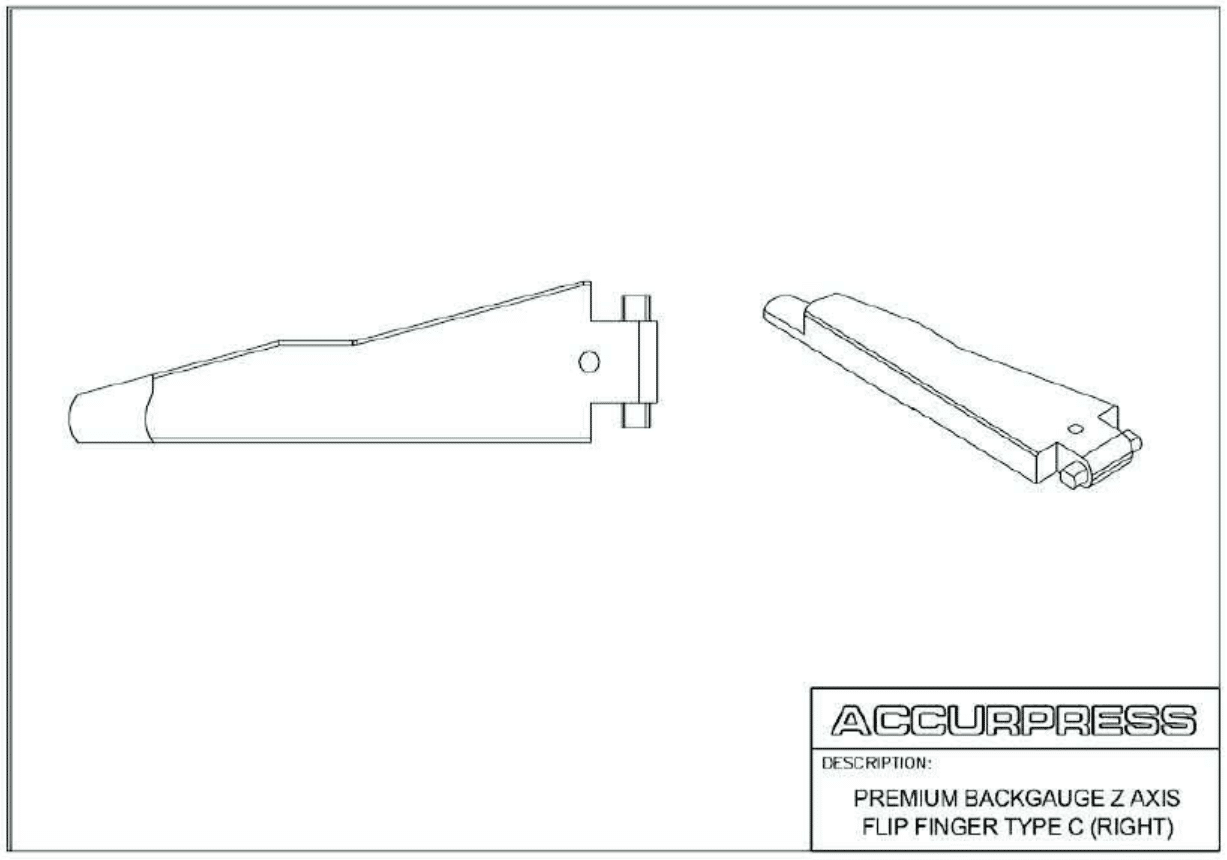

Accurpress Press Brake: Premium Backgauge Z Axis Flip Finger Type C (Right) Assembly

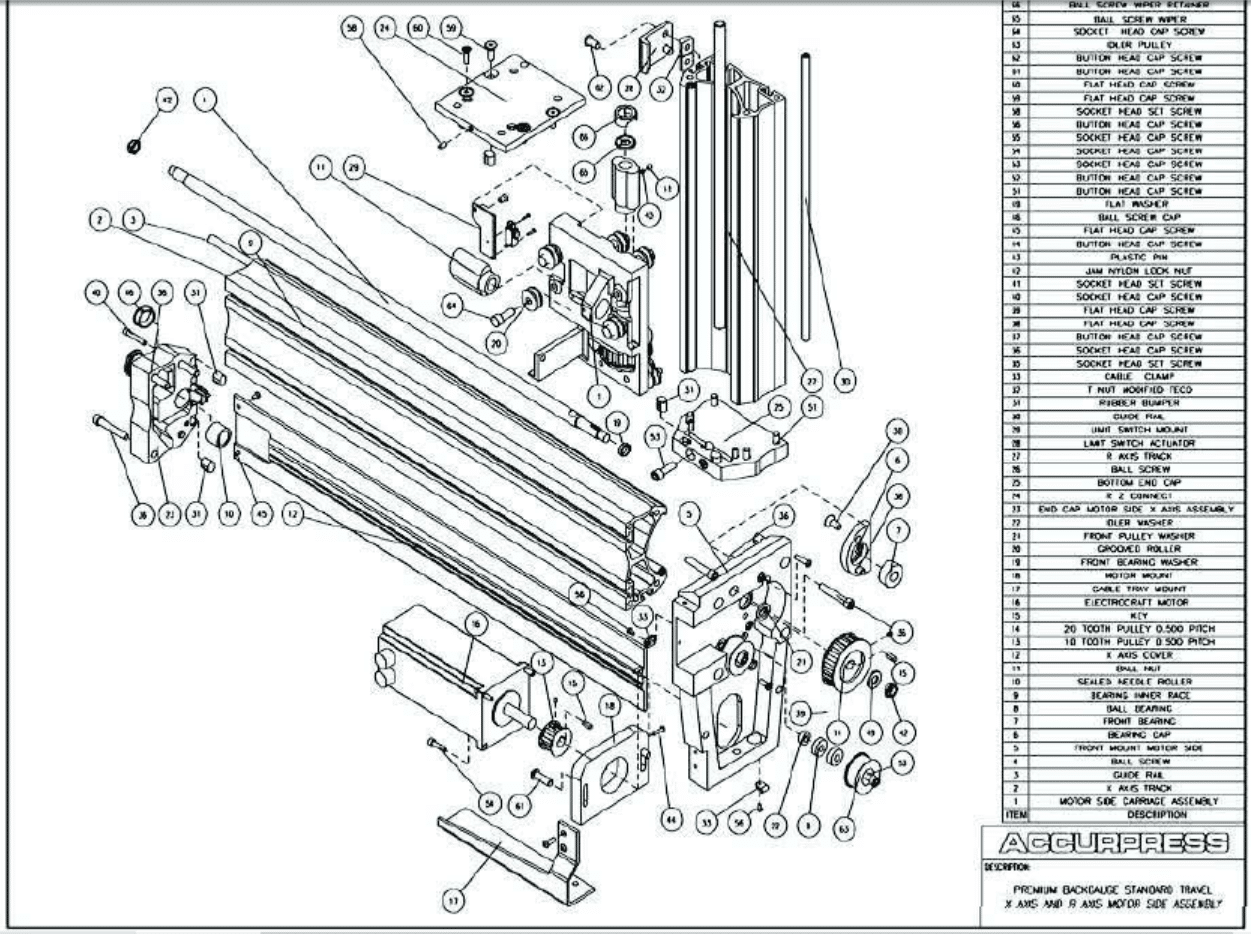

Accurpress Press Brake: Premium Backgauge Standard TRavel X Axis and R Axis Motor Side Assembly

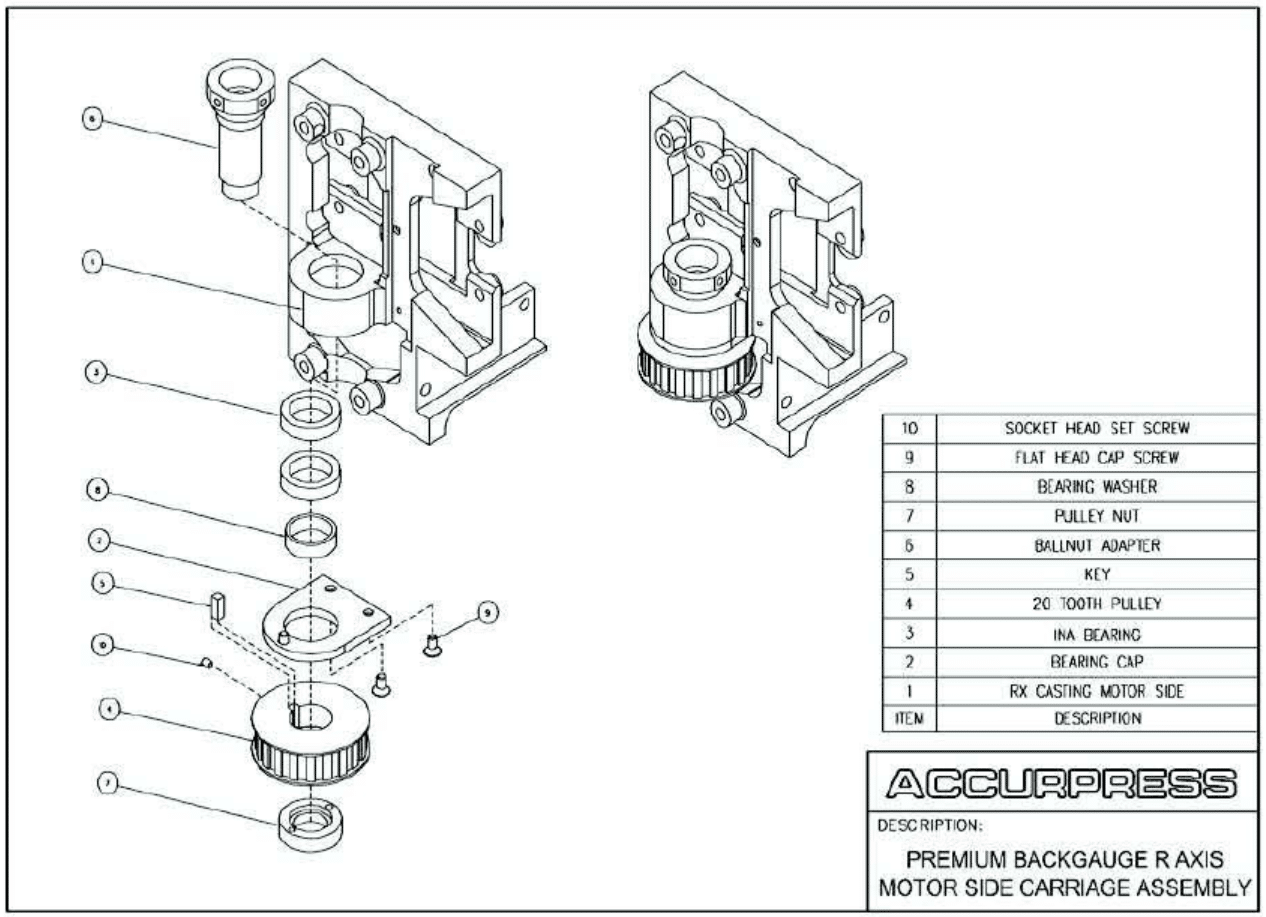

Accurpress Press Brake: Premium Backgauge R Axis Motor Side Carriage Assembly

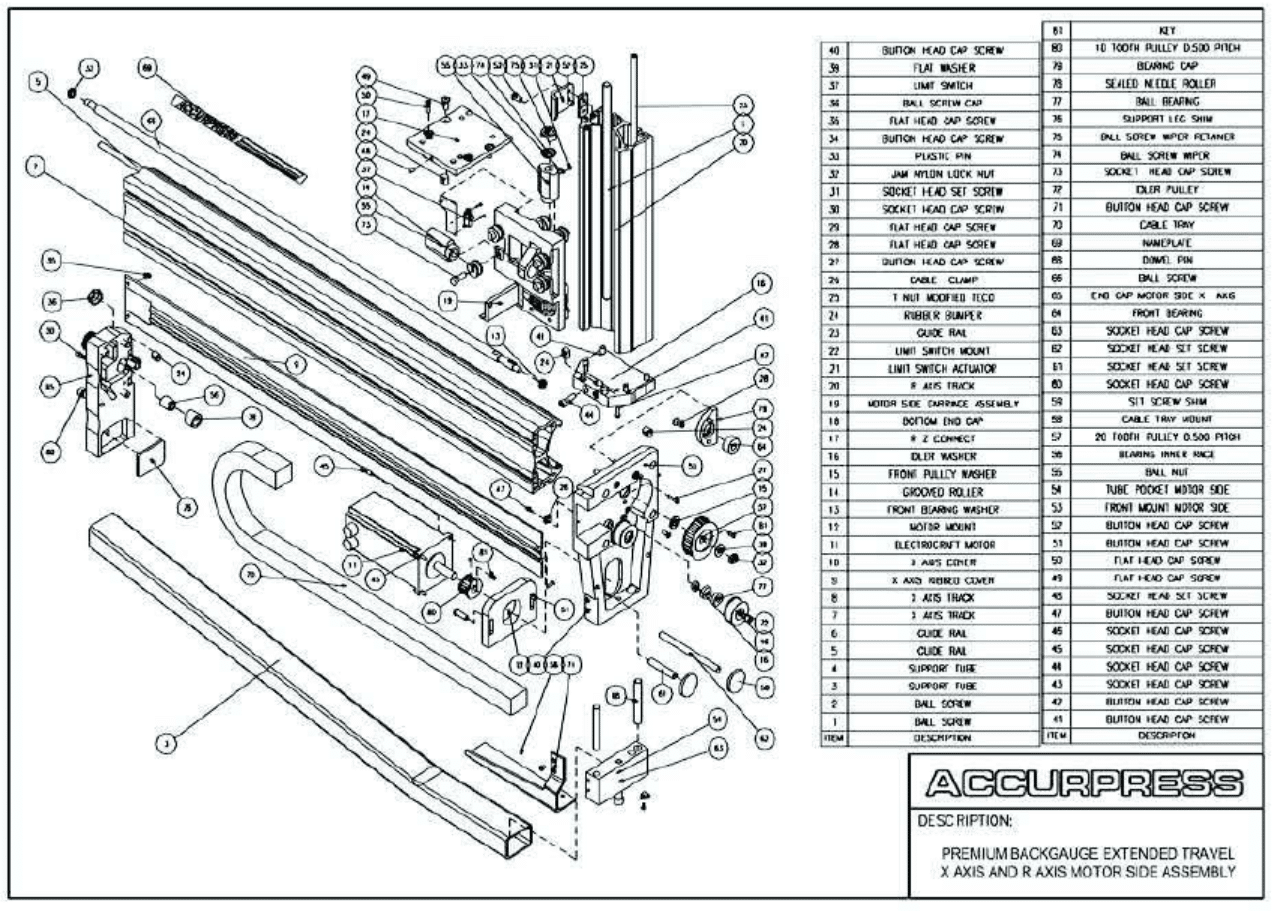

Accurpress Press Brake: Premium Backgauge Extended Travel X Axis and R Axis Motor Side Assembly
