TRUMPF TruLaser vs. Bodor Fiber Lasers: Power, Automation & Value Compared
U.S. fabrication shops evaluating fiber laser cutters often consider TRUMPF’s TruLaser series as a benchmark for quality. However, Bodor’s P, C, i, and H series fiber lasers have emerged as strong contenders – delivering high power, advanced automation, and cost-effective value. In this comparison, we highlight how Bodor’s Fiber Laser machines stack up against TRUMPF’s TruLaser lineup, and why Bodor offers compelling advantages for American manufacturers.
Overview of Bodor and TRUMPF Fiber Lasers
TRUMPF TruLaser machines are renowned German-engineered cutters with a long track record of precision and reliability. They offer a range of 2D laser cutting models from entry-level (TruLaser Series 1000) to high-end production systems (TruLaser Series 5000 and oversize formats) – all known for excellent build quality and performance. TRUMPF recently pushed fiber laser power to 24 kW in its latest TruLaser models, dramatically increasing cutting throughput. These machines include options like automation modules, beam quality enhancements (e.g. BrightLine), and robust service support – albeit often at a premium price.
Bodor’s fiber laser series, by contrast, have rapidly gained global popularity by offering equivalent or greater capabilities at lower cost, with a U.S. support network (repair centers, spare parts warehouses, and English-speaking technicians) to service its growing install base.
Bodor’s Fiber Laser sheet cutting lineup is segmented into specialized series: the P Series for high-output production, C Series for cost-effective fully enclosed cutting, i Series for compact precision cutting, and H Series for ultra-large-format heavy plate cutting. Together, these cover a broad range of applications similar to (and in some cases beyond) what TruLaser machines offer – but with a focus on higher power, more automation standard, and greater value.
Power and Performance: Higher Wattage & Speed with Bodor
When it comes to raw laser power and cutting performance, Bodor leads the field. Bodor fiber lasers are available with extremely high wattages – up to 60 kW on certain models – whereas TRUMPF’s latest TruLaser tops out at 24 kW (TruLaser 5000 series). This means a Bodor P-series machine can significantly outperform TRUMPF in thick plate cutting and overall throughput. For example, Bodor’s flagship P Series boasts cutting speeds up to 200 m/min and acceleration of 4 G, enabling the laser head to reposition 1 meter in just 0.48 seconds. This ultra-fast motion, combined with massive power, increases single-sheet processing efficiency by ~25% over peer machines.
TRUMPF’s high-end cutters are also very fast and precise (the TruLaser 5000 series with 24 kW can cut 1″ steel and achieve 2× higher feed rates than a 6 kW system). However, Bodor’s ability to offer equal or greater cutting power and speed even in mid-tier models is a game-changer. For instance, the mid-range Bodor C-series can be equipped with up to a 40 kW laser source and up to 60 kW in higher end models – power levels that traditionally were unheard of outside top-dollar European machines.
In terms of cut quality and accuracy, both brands leverage fiber laser efficiency for excellent results. TRUMPF’s machines are known for clean cuts and features like CoolLine and BrightLine fiber to assist with thick or intricate cutting. Bodor counters with its own innovations: even at high power, Bodor lasers maintain ±0.05 mm positioning accuracy thanks to rigid machine frames and precision motion systems. Bodor’s H Series (for heavy plate) uses an aerospace-grade aluminum beam and isolated worktable design to ensure stability and accuracy over very large formats. In short, on pure performance specs, Bodor meets or exceeds TruLaser capabilities – delivering the power, speed, and cut quality needed for demanding fabrication jobs.
Automation and Smart Features: Bodor Packs More In, Standard
One of Bodor’s strongest advantages is how much automation and “smart” technology is built into its machines without extra add-ons. Bodor fiber lasers come equipped with a suite of intelligent features aimed at reducing manual work and downtime. For example, automatic nozzle changing, lens cleaning, and gas pressure optimization are standard or readily available on Bodor P and C series models. The operator can start cutting with a single click, as the machine handles edge detection and focusing automatically. One-second edge finding and Bodor’s rapid “Lightning” piercing algorithm minimize idle time before cuts. Collision avoidance is another built-in feature – the Bodor Genius cutting head uses sensors and path planning to prevent crashes into tilted parts. These kinds of conveniences are integrated across Bodor’s lineup, from the top-tier P Series down to the compact i Series.
TRUMPF TruLasers offer automation as well, but often as optional packages or on higher-end models. For instance, TRUMPF’s auto nozzle changer, smart collision prevention, or high-speed gas saver nozzles (Highspeed Eco) are usually part of their premium “options” list, whereas Bodor includes features like nozzle changing and collision avoidance as standard equipment. Bodor’s philosophy has been to provide advanced features at a more accessible price point, which benefits smaller shops that might not afford a fully loaded TruLaser. Both brands support automation in material handling (shuttle tables, pallet changers, etc.), but Bodor even includes dual interchangeable pallets on many models like the P Series by default. Bodor’s software (Bodor Thinker) is user-friendly and supports common CAD/CAM integrations for seamless workflow. Meanwhile, TRUMPF’s software and control (Touchpoint and programming features) are powerful but can be a larger ecosystem to buy into. Overall, Bodor provides a “plug-and-play” automated experience – features like automatic seam compensation, smart nesting of remnants, and remote monitoring come included – whereas with TRUMPF, you often pay considerably more to reach a similar level of automation. This makes Bodor lasers highly appealing for fabricators who want to boost efficiency and reduce labor without breaking the budget.
Cost Efficiency and Value
One of the biggest differences is cost: Bodor fiber lasers tend to be significantly more affordable upfront than an equivalent TruLaser, while still being fully featured. Bodor explicitly markets its machines as a high-value alternative, stating that their manufacturing scale has allowed them to rapidly reduce the price of high-power 10kW+ products compared to historical market norms. This lower capital cost can be a deciding factor for many small and mid-sized manufacturers. Importantly, Bodor’s cost advantage doesn’t come at the expense of support or quality.
In North America, Bodor continues expanding its service team and strengthening local spare-parts inventory to support manufacturers. In the U.S., Bodor has established regional service centers, parts warehouses, and field technicians to ensure customers get prompt assistance.
Bodor also provides a robust 5-year warranty on core components (laser source, cutting head, control) – far exceeding the standard 1-2 year warranties typical in the industry. This extended warranty reflects confidence in the machine’s reliability and greatly reduces maintenance cost concerns for the owner. By contrast, TRUMPF generally offers shorter warranty terms and relies on paid service contracts for extended coverage.
Over the life of the machine, Bodor’s lower consumable and spare part costs can further improve the total cost of ownership. Both Bodor and TRUMPF use efficient fiber laser technology (reducing electricity and assist gas usage compared to older CO₂ lasers), but Bodor differentiates itself with standard features like smart nesting and remnant layout to maximize material use, ensuring stable accuracy across various alloys without the premium markup.
The bottom line: for a U.S. shop, choosing Bodor can mean obtaining comparable production speeds and capabilities at a significantly lower capital investment, helping to achieve a faster ROI. The value proposition is especially strong for small fabrication shops and price-sensitive buyers – Bodor allows you to invest in higher wattage or additional automation now, rather than settling for a lower-spec machine due to budget constraints.
Range and Application Versatility
Both TRUMPF and Bodor offer a range of machine sizes and specialties – but Bodor’s lineup is remarkably comprehensive, covering everything from compact units to giant plate cutters. This means customers can find a Bodor laser that fits their specific application, potentially with more tailored features than a one-size-fits-all solution.
Compact & Mid-Size Cutting

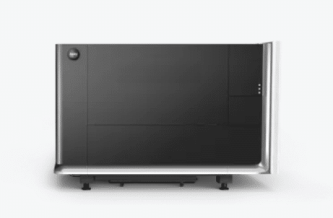

Bodor’s i Series is a fully enclosed laser cutter optimized for small footprint installations (bed sizes around 3′×4′ up to 5′×10′) while still supporting up to 6–12 kW lasers. It’s ideal for job shops or fabrication cells that need safe, clean operation in a tight space. TRUMPF’s closest analog might be the TruLaser 1030/1040 or their smaller format machines, though those typically start at larger 5′×10′ sizes. Bodor’s C Series covers the popular midsize formats (5×10, 6×12, 8×20 feet, etc.) with fully enclosed design and exchange tables for efficient sheet processing. The C Series is built for general-purpose cutting with an emphasis on reliability and affordability – perfect for the majority of sheet metal fabricators.
High-Production Cutting

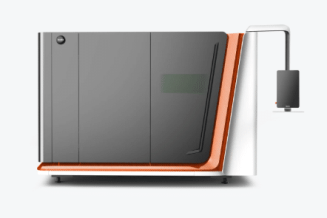

Bodor’s P Series is the flagship for heavy production environments. These machines are available in large bed sizes (up to ~ 41′ × 8′) and come with dual-pallet shuttle tables standard. The P Series is engineered for throughput – it can handle big sheets or multiple parts with continuous loading/unloading. With maximum laser power of 30–60 kW on tap and ultra-fast motion, a single Bodor P machine can take on high-volume cutting jobs that previously might require two slower lasers. TRUMPF’s high-end equivalent would be a TruLaser 5030 or 5040 fiber with automation. Those are excellent machines, but again Bodor often provides virtually the same capabilities (high wattage, fast pallet changer, etc.) at a lower price point – allowing more fabricators to step into high-production tech.
Large-Format & Specialty

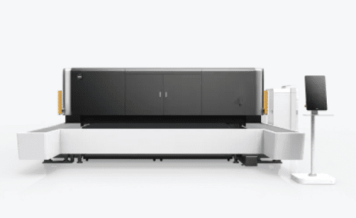

One area where Bodor truly shines is in extra-large format and specialty cutting. The Bodor H Series is an ultra-large-format laser cutter built for outsized workpieces and thick plate processing. It offers bed lengths from 4 m up to 12 m (40 ft) or more in a modular configuration, far exceeding the maximum size of standard TruLaser models (TRUMPF’s oversize variants are typically around 8 m in length). This allows Bodor H machines to cut extremely large parts (think structural beams, large chassis, etc.) in one go, which few competitors can accommodate. Additionally, the H Series (and even some C Series models) can perform bevel cutting – slicing edges at A, V, Y, X, or K angles in a single setup. This is a big advantage for customers who need weld-prepped or chamfered edges directly off the laser. TRUMPF has introduced an “EdgeLine Bevel” function on newer TruLasers for small chamfers, but for large bevel cuts it generally requires secondary operations or specialized equipment. With Bodor, a fabricator can cut thick plate with angled edges in one step, improving productivity for sectors like structural steel and shipbuilding.
In summary, Bodor’s product range is as broad (or broader) than TRUMPF’s, covering entry-level to extreme-duty needs. Whether you are a small job shop making HVAC parts or a large manufacturer cutting 1″ steel plate, Bodor has a machine optimized for the task. And because all these series share Bodor’s core technology foundation (high-power fiber sources, smart controls, safety enclosures), even the smaller models benefit from the innovations of the larger ones.
Bodor vs. TRUMPF – Quick Comparison Chart
To recap the main differences, here’s a side-by-side comparison of Bodor fiber lasers versus TRUMPF TruLaser:
| Aspect | Bodor Fiber Lasers (P, C, i, H Series) | TRUMPF TruLaser Series |
|---|---|---|
|
Max Laser Power |
Up to 60 kW available on multiple models (unmatched for ultra-thick cutting). |
Up to 24 kW on latest TruLaser 5000 models (high, but less than Bodor). |
|
Automation |
Built-in: Automatic nozzle changer, one-click start, smart edge finding, and collision avoidance are standard or included options. Even mid-range models are highly automated. |
Optional: Advanced features (auto nozzle, quality boosts, etc.) often come as add-ons or only in high-end configurations. Basic models are less automated out-of-the-box. |
|
Cutting Speed |
Up to 200 m/min cutting speed with ~4 G acceleration in P Series, enabling extremely fast job cycles. Mid-tier models ~110 m/min with 1.5 G. |
Very high cutting speeds (on the order of ~150 m/min on top models) with ~3 G acceleration. Excellent throughput, but Bodor’s flagship edges out in raw speed/acceleration. |
|
Size Formats |
Wide range: Compact 3×4 ft and 5×10 ft enclosures (i/C Series) up to 40 ft long beds in H Series. Dual-pallet tables on many models for continuous cutting. |
Standard range: Common formats like 5×10, 6×12, 8×20 ft. Oversize models available (~26 ft max length), but ultra-large 40 ft systems not typical. Pallet changers mostly on mid/high models. |
|
Bevel Cutting |
Yes – Certain Bodor models cut bevels (A, V, X, Y, K angles) in one step for weld-ready parts. No separate bevel head needed. |
Limited – Standard TruLasers cut 90° only. Small bevel features possible via special functions, but large bevel cuts require secondary processing or custom solutions. |
|
Cost & Warranty |
Cost-efficient: Generally lower purchase price for similar specs. Backed by 5-year warranty on core components and a growing U.S. support network (multiple service centers and technical resources). Strong ROI and lower ongoing costs. |
Premium-priced: Higher upfront cost reflecting brand and German build. Standard warranty is shorter; extended maintenance plans add cost. Excellent factory service in the U.S., though at a premium rate. |
Bodor Stands Out in Fiber Laser Cutting
For U.S. manufacturers, the choice between TRUMPF TruLaser and Bodor fiber lasers ultimately comes down to priorities. TRUMPF offers proven machines with a famous pedigree – a safe choice for those who value legacy, incremental innovation, and don’t mind the premium. Bodor, however, can deliver more similar capabilities for a lower investment. Bodor’s P, C, i, and H series lasers exemplify modern fiber cutting: high-wattage performance, smart automation, and versatility from small jobs to massive projects.
Backed by an extensive 5-year warranty and expanding U.S. support through partners like Automec, Inc. (a Certified USA Dealer), Bodor provides American fabrication shops with confidence and value in one package. The strengths of Bodor – laser power, turnkey automation, cost-efficiency, and application-specific designs – make it a formidable choice for shops looking to maximize productivity and ROI in their next laser cutting system. In the fiber laser showdown, Bodor is no longer the underdog; it’s the up-and-coming leader offering the advanced features and business value that today’s manufacturers demand.
Automec is proud to be a certified U.S. dealer of the Bodor Fiber Lasers, and to provide excellent service and support to our customers. If you are interested in learning more about Fiber Lasers, please contact us today. We would be happy to answer your questions and provide you with a quote.
