A technical comparison of servo electric press brakes and hydraulic systems—featuring CoastOne C-Series, G-Series, and H-Series performance, precision, and ROI
For shops already running CNC equipment, the shift toward servo electric press brakes is no longer a trend—it’s a production decision. However, when you compare CoastOne servo electric press brakes to hydraulic press brakes, you will find that the choice isn’t about technology preference. Instead, it’s about where each platform delivers measurable gains in accuracy, throughput, and cost per part.
In this guide, we compare CoastOne’s C-Series, G-Series, and H-Series to help experienced fabricators determine where each machine fits on a modern shop floor.
Servo Electric Press Brakes vs. Hydraulic: What Changes in Real Production?
At a glance, the difference seems straightforward:
- A servo electric press brake uses ball screws and servo motors
- A hydraulic press brake uses cylinders and fluid power
In practice, the real differences appear in control resolution, force distribution, and compensation strategy. Read on to compare servo electric vs. hydraulic press brakes when it comes to these factors.
Precision and Control Resolution
A servo electric press brake operates using direct positional control:
- Encoder-driven feedback
- No system compressibility
- No valve lag
As a result, the machine can achieve very high repeatability; CoastOne publishes ±0.002 mm Y-axis repeating accuracy on some models. By contrast, hydraulic systems depend on:
- Pressure-based positioning
- Oil condition and temperature
- Valve response
Even with modern controls, this introduces variability that must be compensated elsewhere.
Crowning: Compensation vs. Distributed Force Control
Most comparisons overlook this critical distinction. Hydraulic press brakes:
- Use bed crowning (manual or CNC)
- Apply compensation across the full length
In contrast, the CoastOne servo electric press brake platform—especially the G-Series—uses:
- Multi-axis servo-driven crowning
- Independent load adjustment across the beam
This means the ram can adjust dynamically during the bend. CoastOne describes this as direct crowning, with servo-driven ball screws crowning and bending simultaneously.
Frame Design and System Stability
Frame geometry plays a larger role in a servo electric press brake because force is applied more precisely.
- CoastOne C-Series (C-frame): Optimized for compact, localized work zones
- CoastOne G-Series (O-frame): Provides symmetrical rigidity and reduced deformation
As tonnage and bed length increase, this structural difference becomes more significant.
Learn more about CoastOne:
Energy Consumption and Duty Cycle
A servo electric press brake only consumes power during motion. Therefore, it offers:
- Lower energy usage
- Reduced heat generation
- More efficient multi-shift operation
Hydraulic systems, on the other hand:
- Run pumps continuously
- Generate excess heat
- Consume more energy over time
For high-mix environments, this difference directly impacts operating cost.
CoastOne Press Brake Comparison: C-Series vs. G-Series vs. H-Series

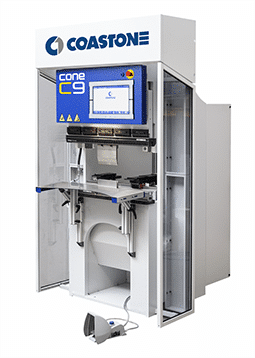

C-Series: Precision Cell Work and Throughput Optimization
The CoastOne C-Series electric press brake is best used as a capacity optimization tool, not a general-purpose brake.
Best fit:
- Small-part production
- Dedicated forming cells
- High-repeatability applications
Why it matters:
Running small parts on large hydraulic machines creates inefficiencies. A servo electric press brake like the C-Series solves this by improving utilization and reducing bottlenecks.

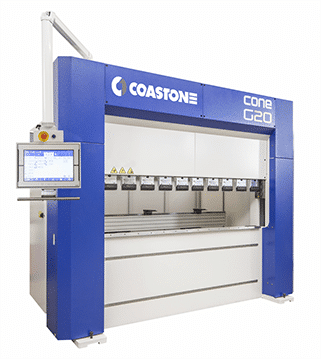

G-Series: Full-Scale Servo Electric Press Brake Production
CoastOne’s servo electric press brake G-Series represents the most complete implementation of a servo electric press brake.
Key advantages:
- Direct-drive ball screw system (no belts or pulleys)
- Independent servo control across multiple axes
- Built-in crowning through force distribution
What this solves:
- Angle inconsistency across long parts
- Manual crowning adjustments
- Material variation issues
As a result, the G-Series delivers consistent bend angles across the entire bed without secondary correction.

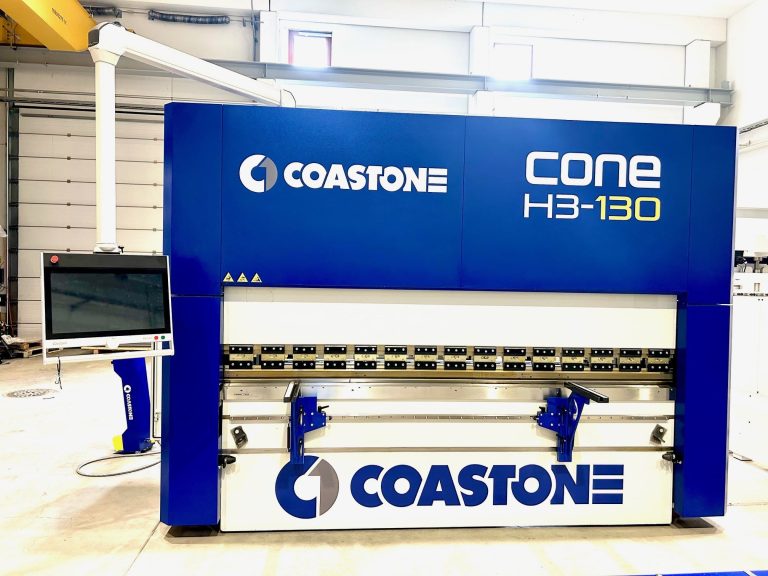

H-Series: Hydraulic Performance for High-Tonnage Work
While the servo electric press brake continues to gain ground, hydraulic systems such as the CoastOne H-Series hydraulic press brake remain essential.
Best fit:
- High-tonnage applications (100+ tons)
- Thick materials
- Structural fabrication
Why shops still choose hydraulic:
- Lower cost per ton at scale
- Greater force capacity
- Broader application range
However, this comes with trade-offs in energy use, maintenance, and consistency. See this hydraulic press brake comparison for more details.
Industry Comparison: Servo Electric Press Brake Technologies
Most major manufacturers now offer a servo electric press brake, but the underlying drive systems and design philosophies vary. For experienced shops, the differences are less about “electric vs. hydraulic” and more about how force is transmitted and controlled. These are typical features and strengths of some leading machines:
AMADA (EGBe Series)
- High-end integration with automation systems
- Advanced CNC controls and user interface
- Strong positioning in large-scale, automated environments
SafanDarley (E-Brake Series)
- Dual-servo drive systems
- Mechanical transmission components such as belts or pulleys
- High-speed operation
- Efficient performance in light-to-medium tonnage applications
LVD (Dyna-Press)
- Flexible machine configuration
- Integration with adaptive bending and control systemss
- High-mix, low-volume environments
- Shops prioritizing quick setup and workflow flexibility
TRUMPF (TruBend 7000)
- Linear motor technology for ram movement
- Very fast cycle times
- Strong integration with automated production systems
- High-end manufacturing environments
- Applications where speed and automation are primary drivers
Where CoastOne Stands Out
-
Direct-drive ball screw system
Servo motors are directly coupled to ball screws, eliminating intermediate transmission components such as belts or pulleys. -
Multi-axis force distribution
Multiple ball screws independently apply force across the beam, allowing for localized adjustment during bending. -
Integrated crowning through control architecture
Instead of relying solely on traditional bed crowning systems, force can be adjusted dynamically across the working length. -
O-frame structural design (G-Series)
Provides symmetrical rigidity, which supports consistent performance over longer bend lengths.
Cost Per Part: The Real Decision Driver
For most shops, machine selection ultimately comes down to cost per bend.
Servo Electric Press Brake Advantages
- Lower energy consumption
- Minimal maintenance requirements
- Reduced setup time
- Less scrap and rework
Hydraulic Considerations
- Lower upfront cost at high tonnage
- Higher operating costs over time
- Greater reliance on operator input
When Servo Electric Wins
A servo electric press brake typically delivers better ROI when:
- Producing tight-tolerance parts
- Running high-mix, low-volume jobs
- Reducing setup time is critical
When Hydraulic Wins
Hydraulic systems remain competitive when:
- Tonnage requirements are consistently high
- Material thickness drives machine selection
- Precision is secondary to force
Choosing the Right CoastOne Press Brake
Most shops benefit from aligning machine type to workload:
- Use the C-Series to improve efficiency on small parts
- Use the G-Series servo electric press brake for precision production
- Use the H-Series for force-dominant applications
In many cases, the optimal solution is not replacement—but strategic integration of both technologies.
Frequently Asked Questions
A servo electric press brake is used for high-precision bending where repeatability and consistency are critical.
Often. Because it uses direct positional control, a servo electric press brake usually provides higher accuracy and repeatability than hydraulic systems. However, the accuracy also depends on the machine, controls, tooling, and application.
Choose hydraulic when your applications require high tonnage or thick material forming.
CoastOne uses a direct-drive system with multi-axis crowning, allowing for more precise force distribution than many competitors.
Yes. A servo electric press brake reduces energy usage, maintenance, and scrap, which lowers total cost per part over time.
Conclusion
The servo electric press brake represents a shift toward precision-driven manufacturing. However, hydraulic systems still play a role in high-force applications. For most fabrication shops, the advantage comes from deploying each technology where it performs best—not choosing one exclusively.
Automec is proud to be a certified U.S. dealer of CoastOne servo electric press brakes and hydraulic press brakes. Our inventory includes a wide range of machines, from large electric press brakes to smaller press brakes suited for small part forming. If you are interested in learning more about CoastOne machines, please contact us today.
